GPLD/26/60
View All Installation Instructions
- Linear Drain Instructions All Liners
- Linear Drain Instructions Liquid
- Linear Drain Instructions Sheet Membrane
- Linear Drain Instructions Vinyl Liner

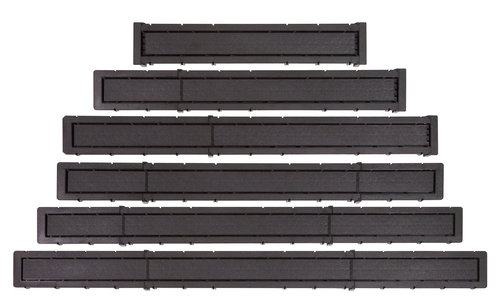

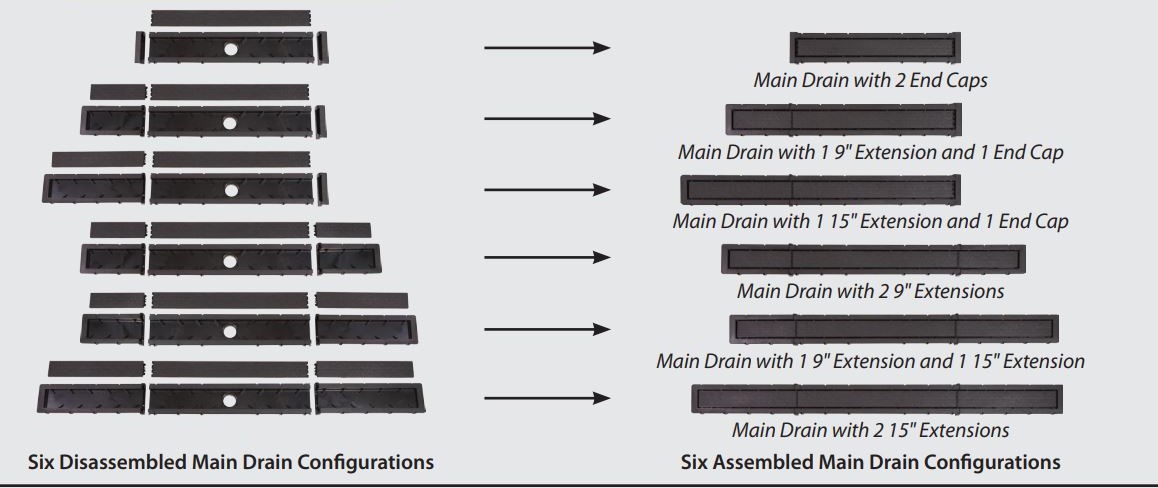

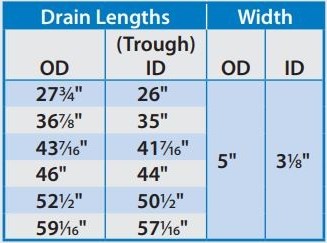

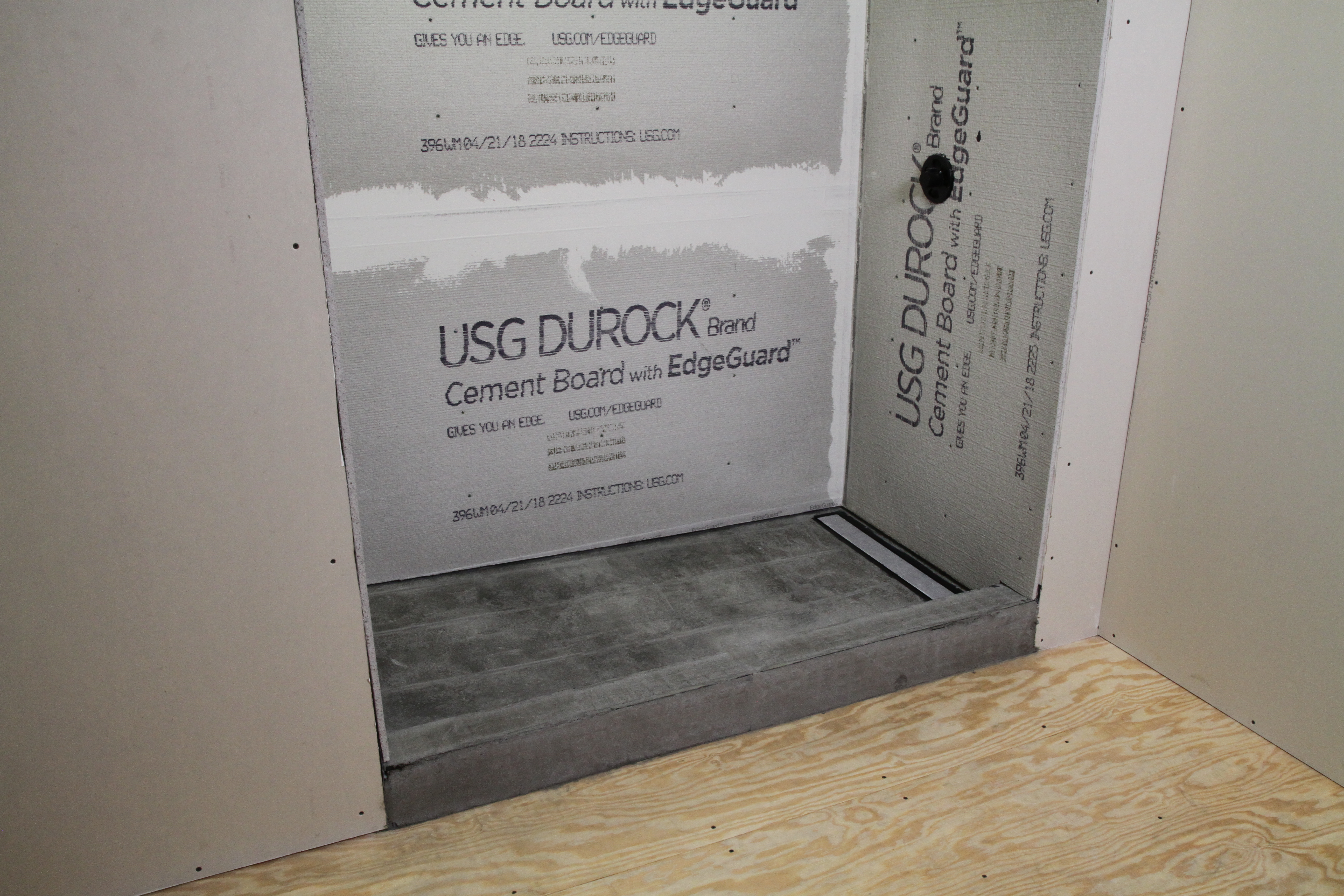

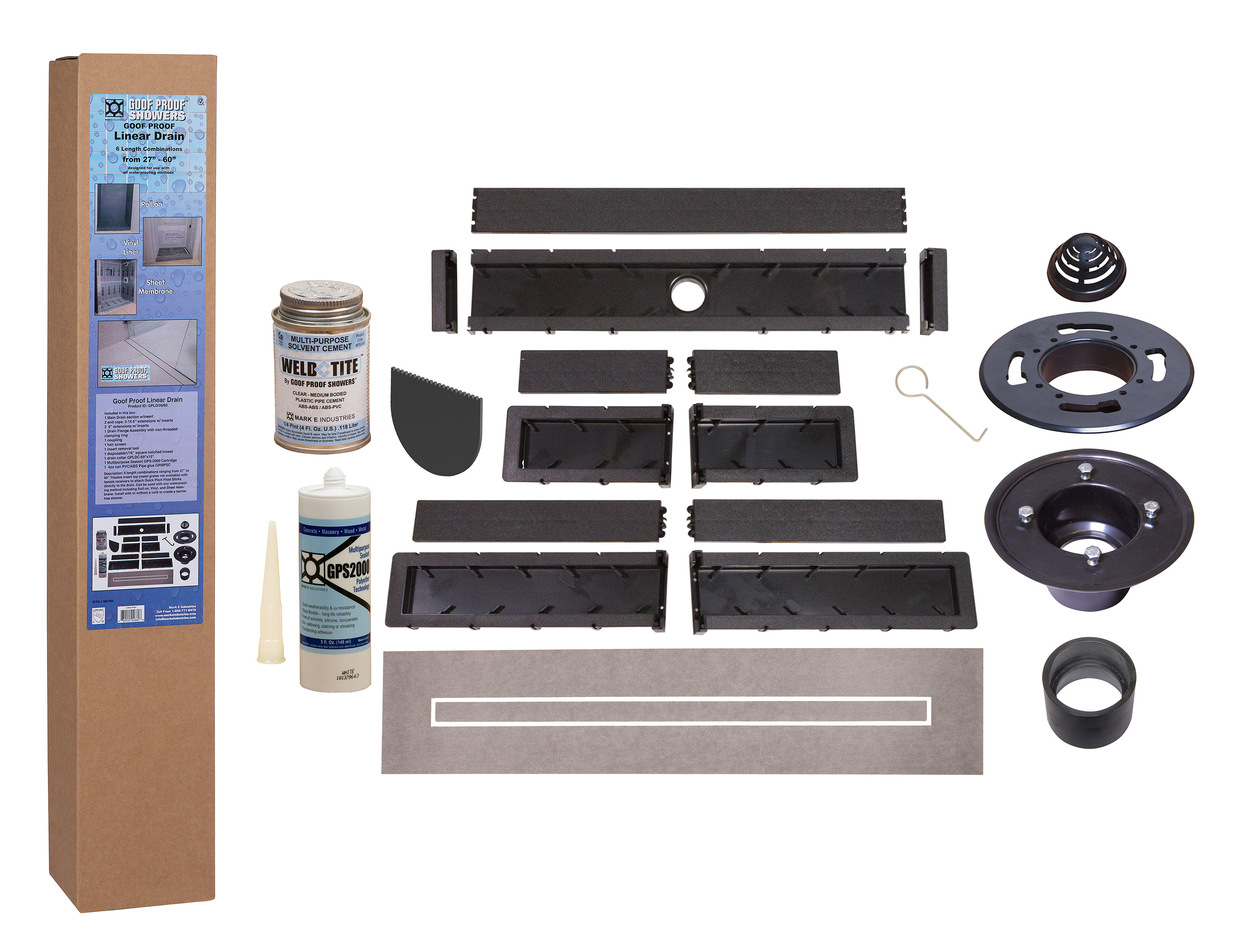

GPLD/26/60 Goof Proof Linear Drain is an all-inclusive Linear Drain Package. Customizable to six length combinations ranging from 27" to 60" w/Tileable insert top (metal grates available for select sizes). Female receivers attach Quick-Pitch Float Sticks directly to the drain. GPLD can be used with any waterproofing method including Roll on, 40mil Vinyl Pan Liner, and Sheet Membranes. Install with or without a curb to create a barrier free shower entrance
1-Main Drain Section w/Insert, 2-End Caps, 2-15.5" Extensions w/ Inserts, 2-9" Extensions w/ Inserts, 1-Drain Flange Assembly with Non Threaded Clamping Ring, 1-Coupling, 1-Hair Screen, 1-Insert Removal Tool, 1-disposable1/16" square notched trowel, 1-Drain Collar/GPLDC-69"x15", 1-Multipurpose Sealant/GPS-2000 Cartridge and 1- 4oz can PVC/ABS Pipe glue GPMPSC

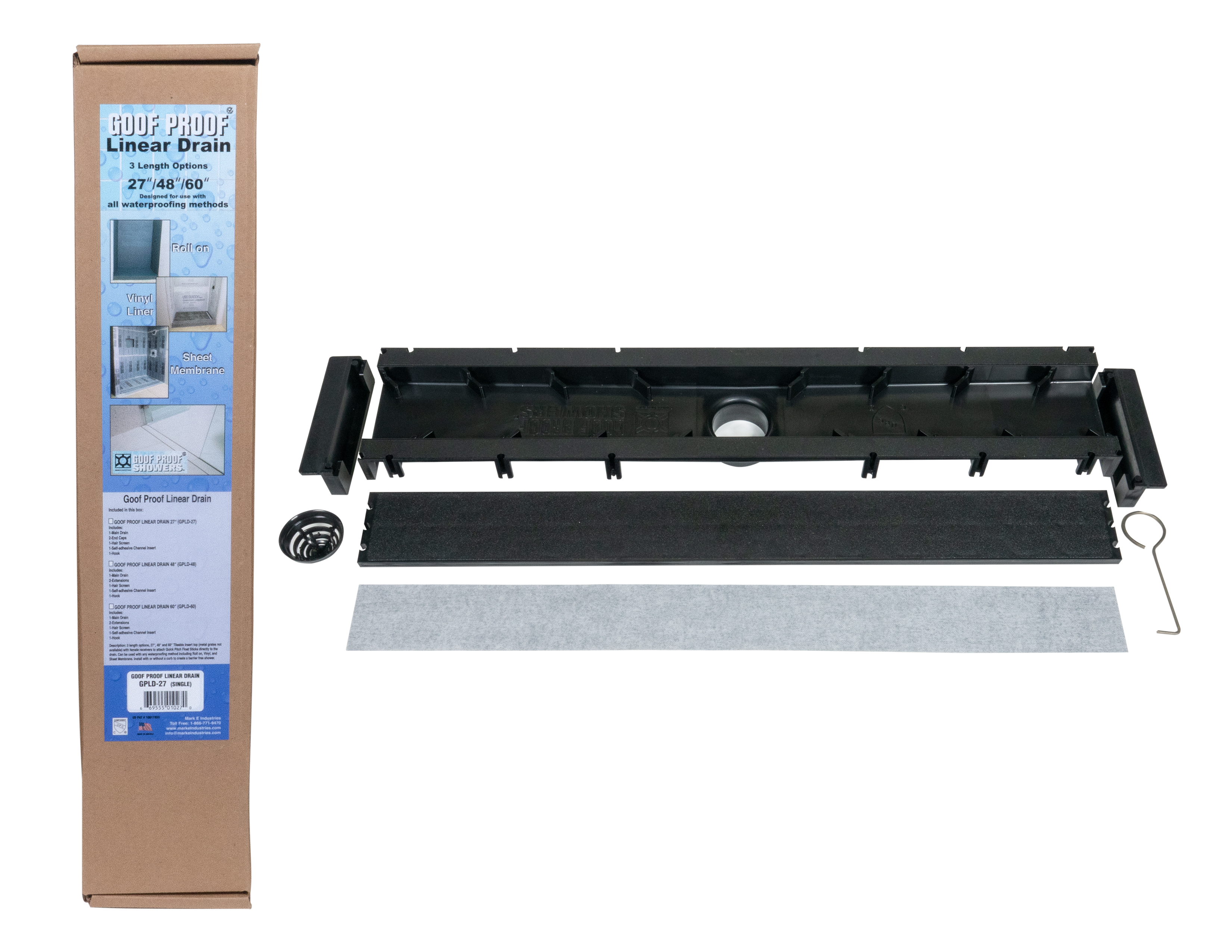

GPLD-27 (OD-27¾" / ID-26")

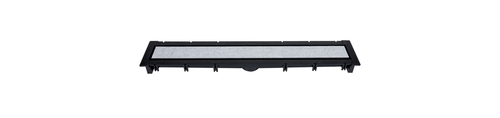

Goof Proof 27" Linear Drain w/tileable Insert top (metal grates available). Female receivers attach Quick-Pitch Float Sticks directly to the drain. GPLD-27 can be used with any waterproofing method including Roll on, 40mil Vinyl Pan Liner, and Sheet Membranes. Install with or without a curb to create a barrier free shower entrance. Angled drain trough for encouraged water movement with removable Insert for easy cleaning. Use of EFS -101.2 Extra Stick Kits are recommended.
Included are: 1-Main Drain section with Insert, 2 End Caps, self-adhesive Insert bonding strip, 1-Hair Screen, 1-Insert Removal Tool and Instructions
- Drain Body - 27¾ inches long x 5 inches wide
- Drain Trough - 26 inches long x 3⅛ inches wide

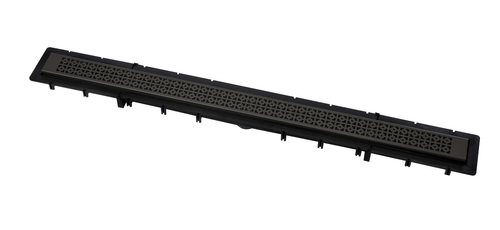

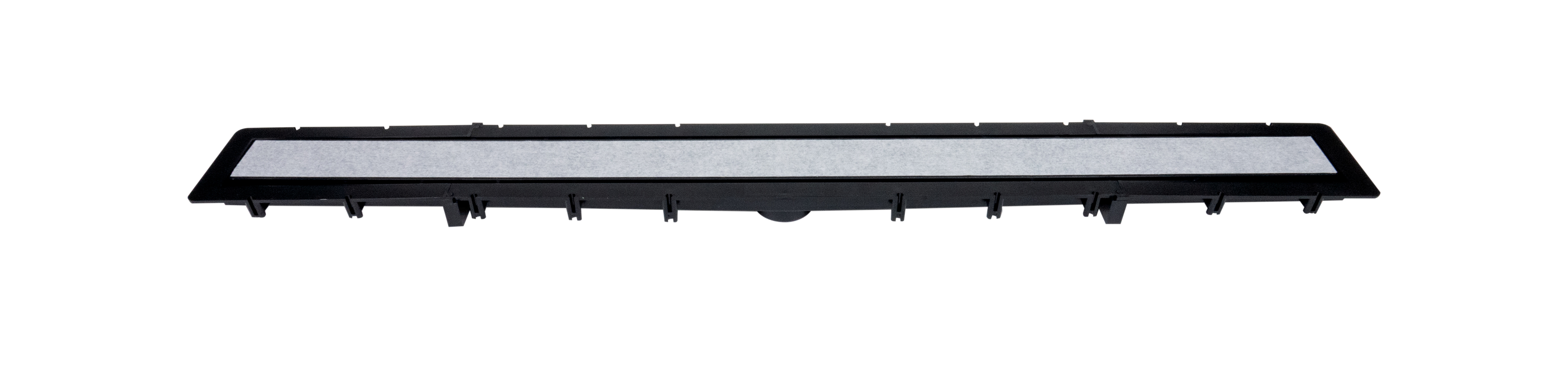

GPLD-48 (OD-46" / ID-44")

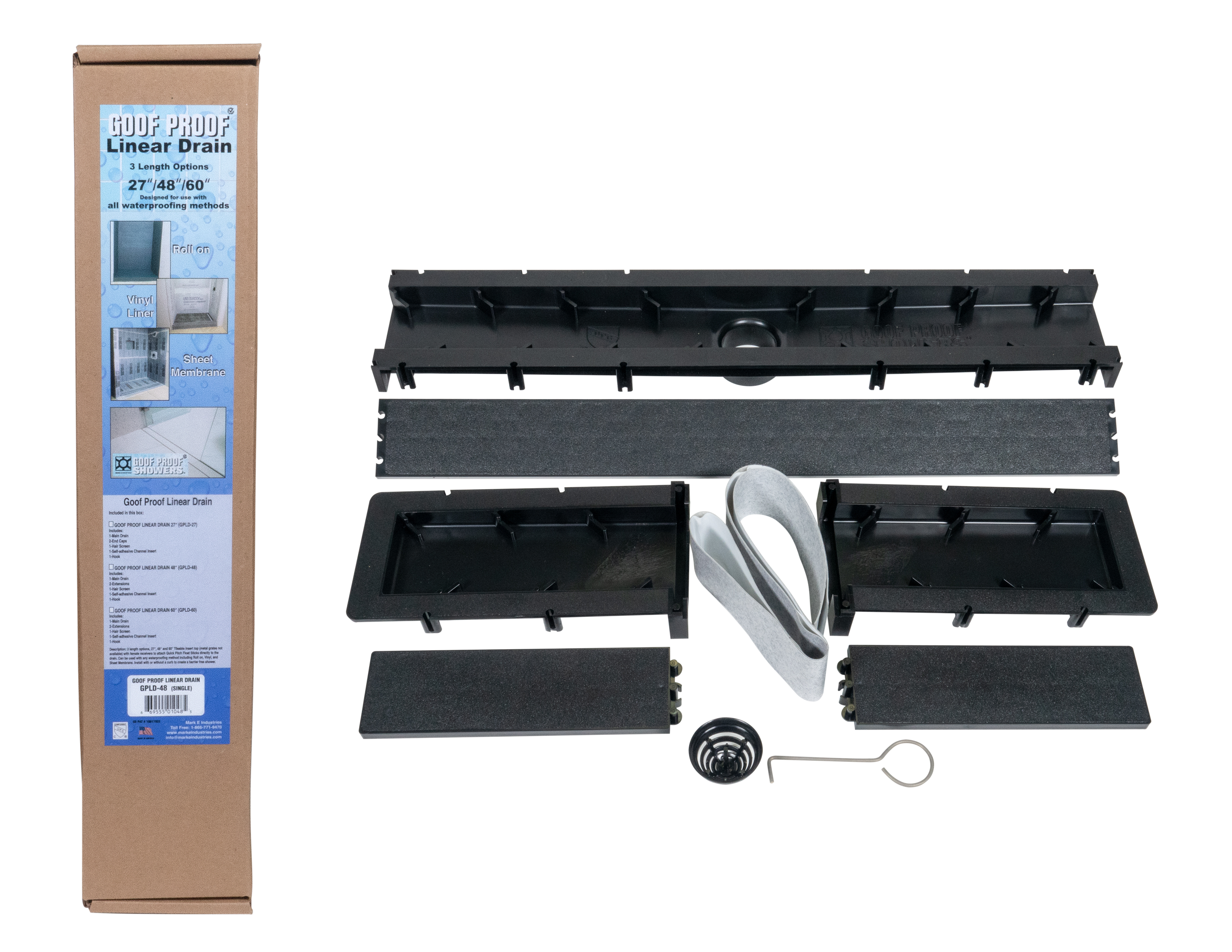

Goof Proof 48" Linear Drain w/tileable Insert top (metal grates available). Female receivers attach Quick-Pitch Float Sticks directly to the drain. GPLD-48 can be used with any waterproofing method including Roll on, 40mil Vinyl Pan Liner, and Sheet Membranes. Install with or without a curb to create a barrier free shower entrance. Angled drain trough for encouraged water movement with removable Insert for easy cleaning. Use of EFS -101.2 Extra Stick Kits are recommended.
Included are: 1-Main Drain section with Insert, 2-10" Extensions with Inserts, self-adhesive Insert bonding strip, 1-Hair Screen, 1-Insert Removal Tool and Instructions
- Drain Body - 46 inches long x 5 inches wide
- Drain Trough - 44 inches long x 3⅛ inches wide

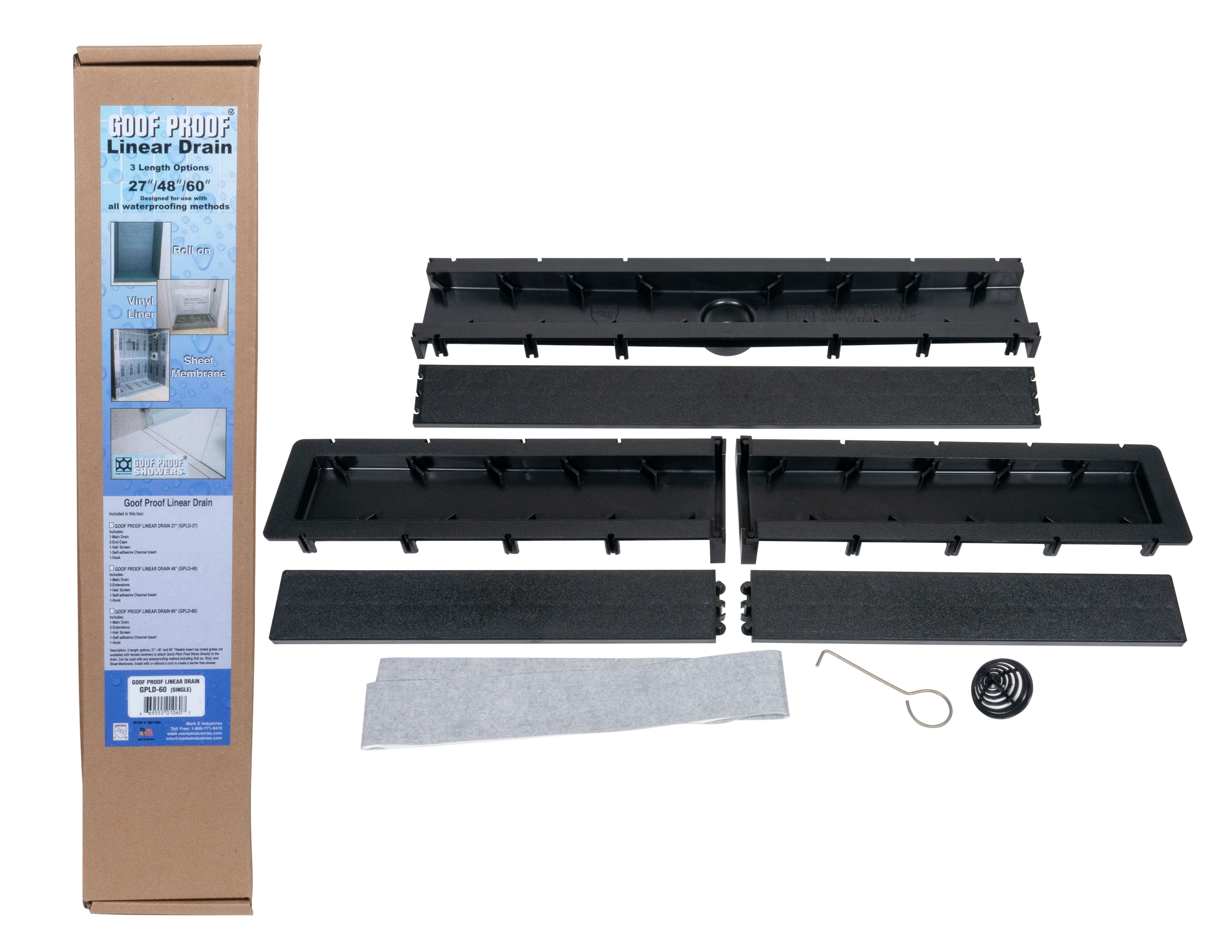

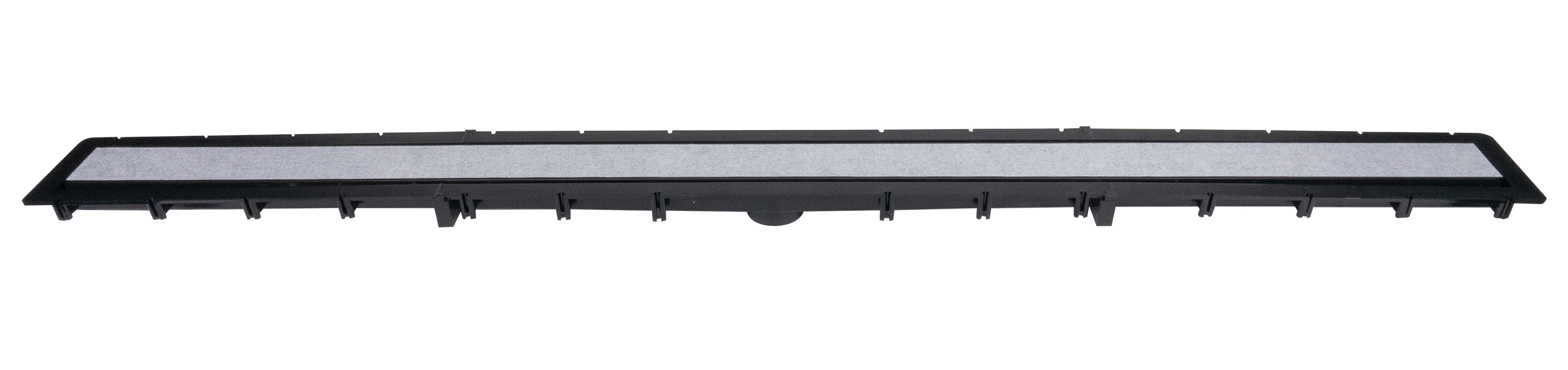

GPLD-60 (OD-59¹⁄₁₆" / ID-57¹⁄₁₆")
Goof Proof 60" Linear Drain w/tileable Insert top (metal grates available). Female receivers attach Quick-Pitch Float Sticks directly to the drain. GPLD-60 can be used with any waterproofing method including Roll on, 40mil Vinyl Pan Liner, and Sheet Membranes. Install with or without a curb to create a barrier free shower entrance. Angled drain trough for encouraged water movement with removable Insert for easy cleaning. Use of EFS -101.2 Extra Stick Kits are recommended.
Included are: 1-Main Drain section with Insert, 2-15.5" Extensions with Inserts, self-adhesive Insert bonding strip, 1-Hair Screen, 1-Insert Removal Tool and Instructions.
- Drain Body - 59¹⁄₁₆ inches long x 5 inches wide
- Drain Trough - 57¹⁄₁₆ inches long x 3¹⁄₁₆ inches wide

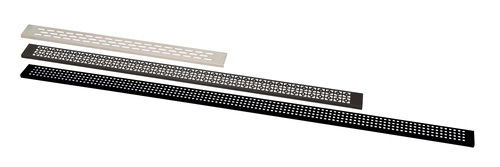

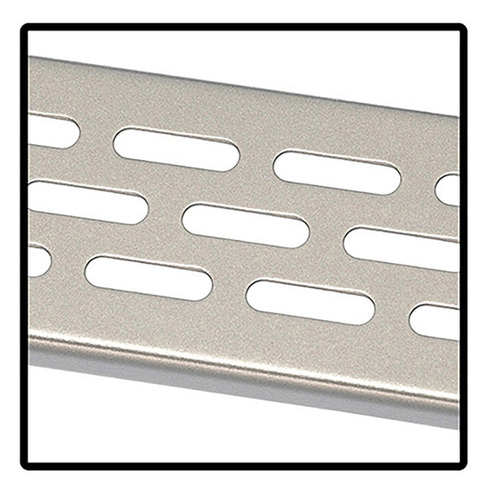

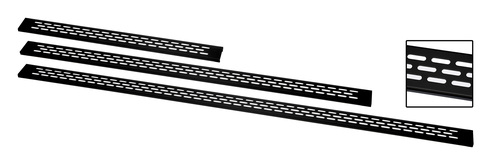

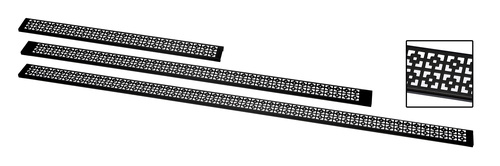

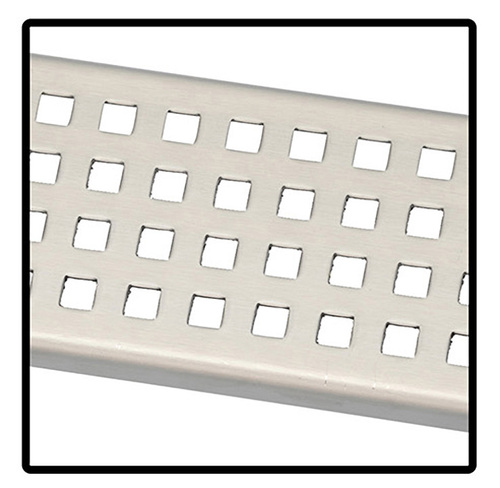

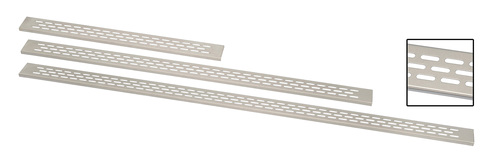

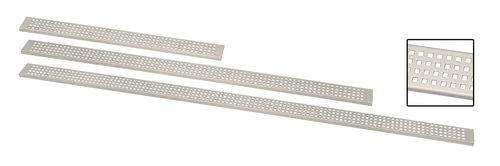

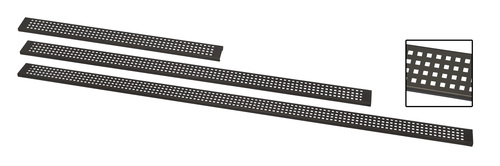

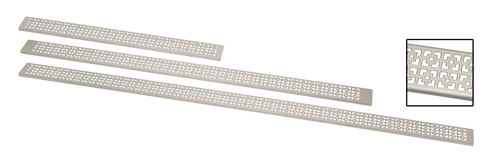

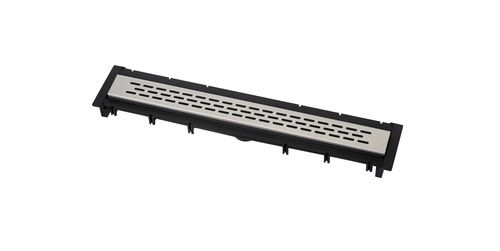

Metal Drain Grates for GPLD-27, GPLD-48 and GPLD-60.
These high-quality stainless steel, contemporary styled Grate assemblies are sold separately as an option to the tiled-on drain inserts that are included in all our Linear Drain packages. Grates are only available in these three specific lengths, in three different design styles and in three popular color choices. Supplied are drain length appropriate Drain Adapter(s) along with easy-to-use Height Adjusters that accommodate all common thicknesses of tile and stone.
Starting at $133
- 27"
- 48"
- 60"

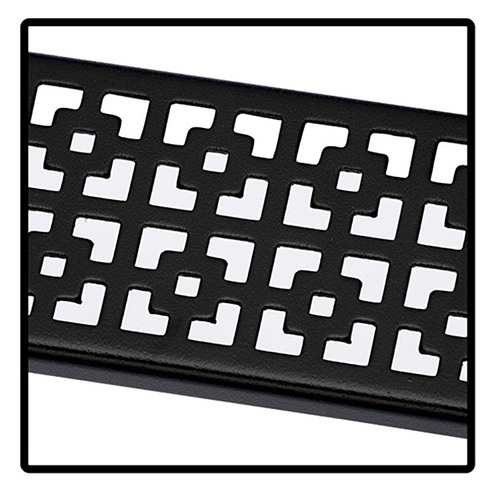

- Mission
- Oval
- Square
- Matte Black
- Oil Rubbed Bronze
- Brushed Stainless Steel
Low profile, PVC solvent weld drains for 2” over or 3” inside DWV waste pipe connections. 2” IPS threaded adjustable risers with heavy duty chromed brass strainers that resist corrosion much better than average thin, low grade metal strainers. Available in both round and square styles. Weep holes in the clamping flange allow for proper drainage and is secured with 4 stainless steel bolts into brass inserts. Integrated water test plug included.

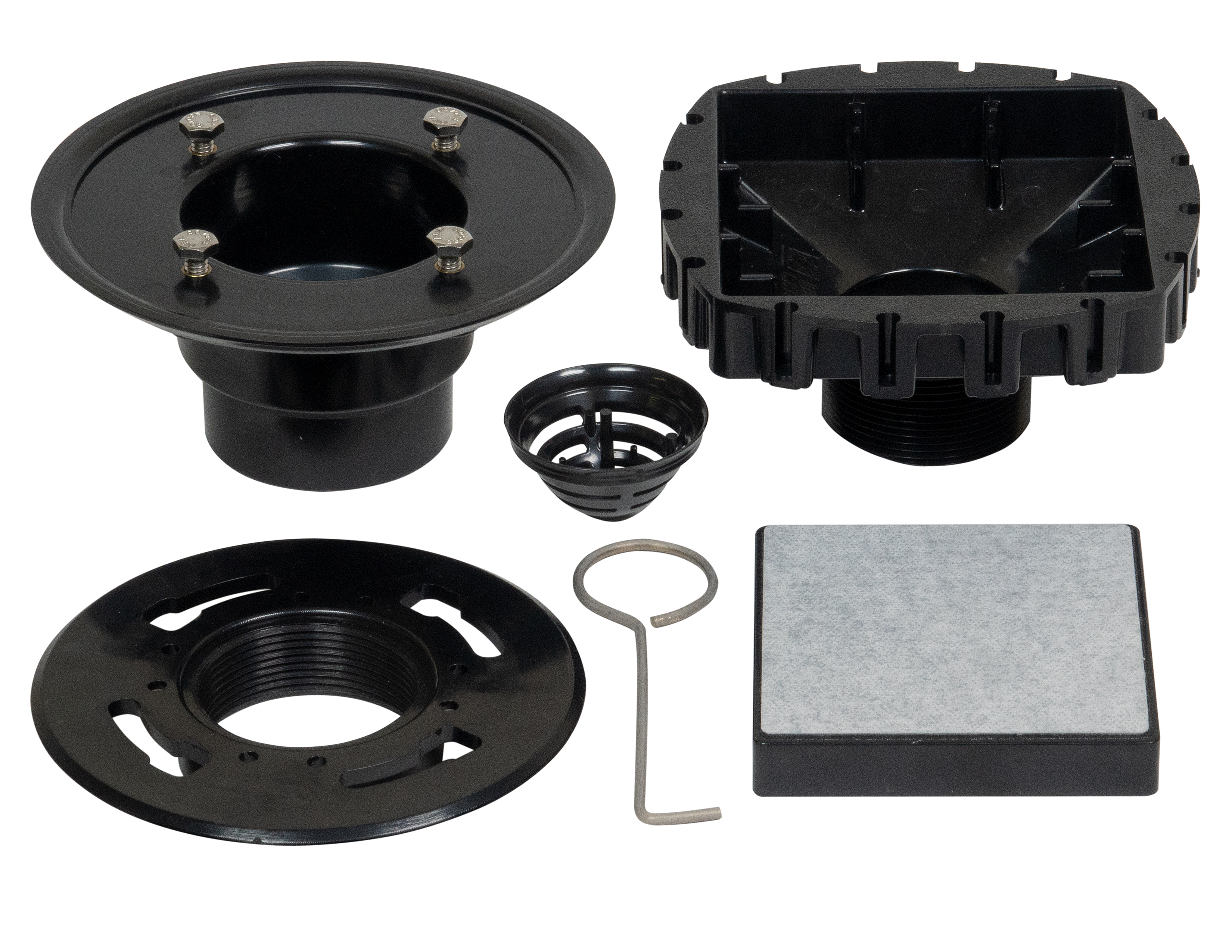

GPSD

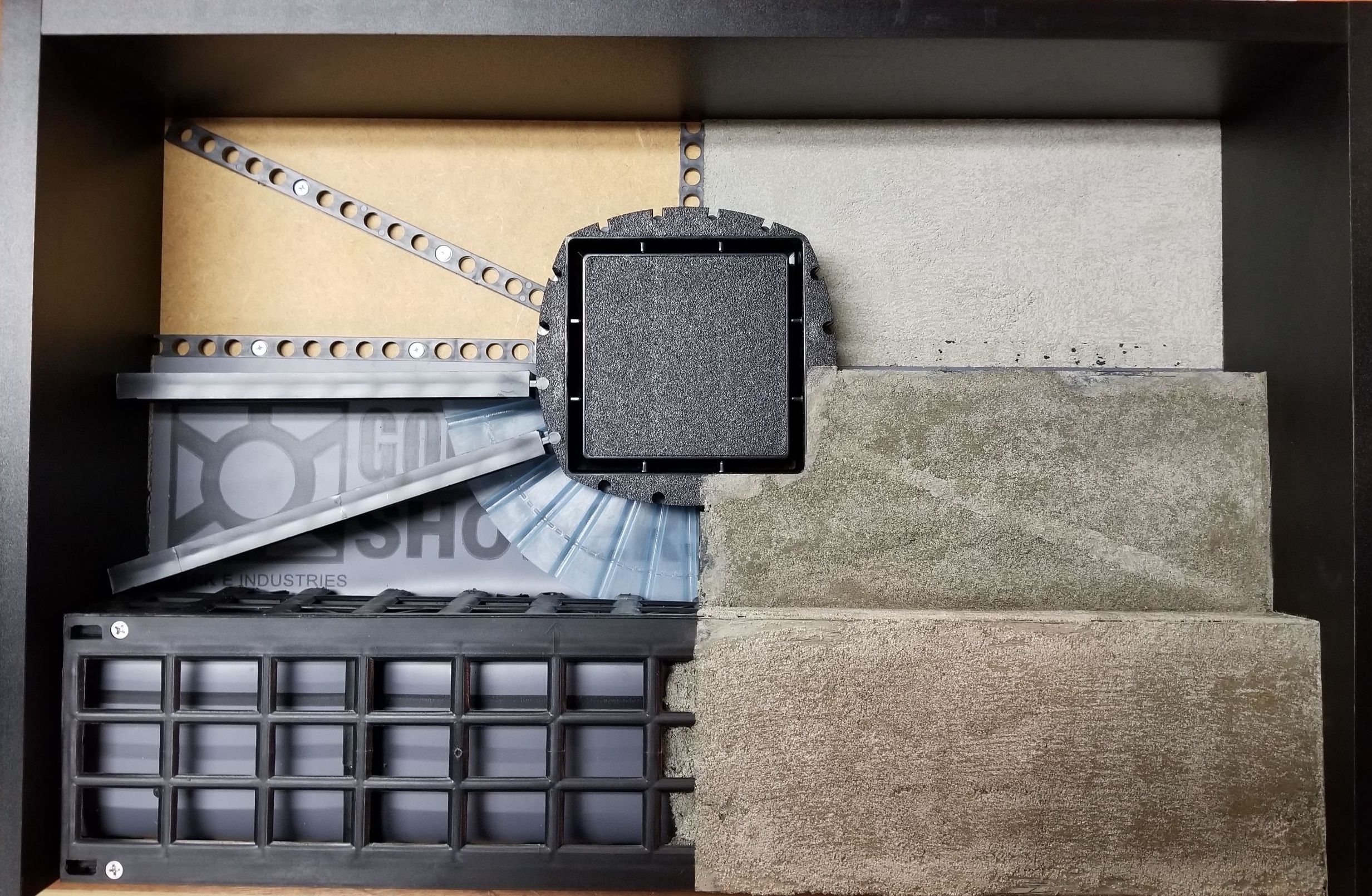

4" Square Shower Drain w/Tileable Insert top (metal grates currently unavailable) has female receivers to attach Quick Pitch Float Sticks directly to the drain. GPSD can be used with all waterproofing systems including Roll on, 40mil Vinyl, and Sheet Membranes.
GPSD: 1- Drain Flange Assembly w/ Threaded Clamping Ring, 1- Threaded Riser and Insert, 1-Hair Screen and 1-Insert Removal Tool.

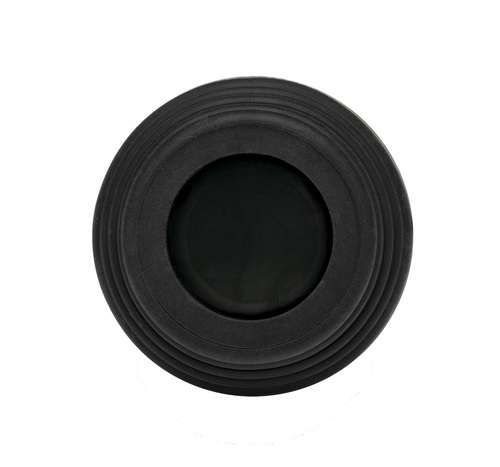

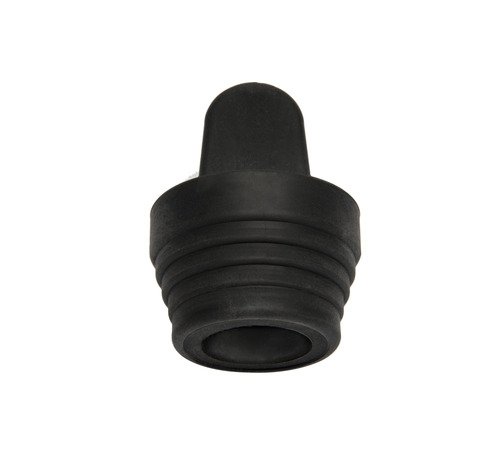

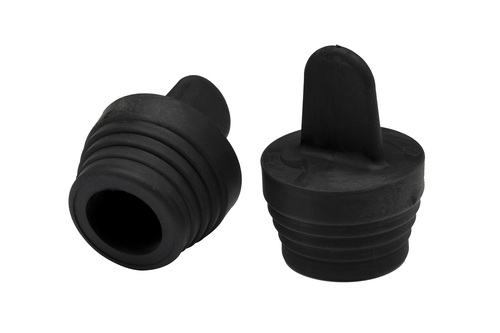

Designed for non-pressure type water testing of shower pan liners and shower compartment waterproofing integrity. Often this testing is mandatory in order to meet building codes and regulations in both remodeling and new construction, whether residential or commercial, to be certain against any leakage. Reusable and fits all standard 2 inch shower drain outlets. Long life, thermoplastic rubber stopper provides a leak-free seal. No tools required

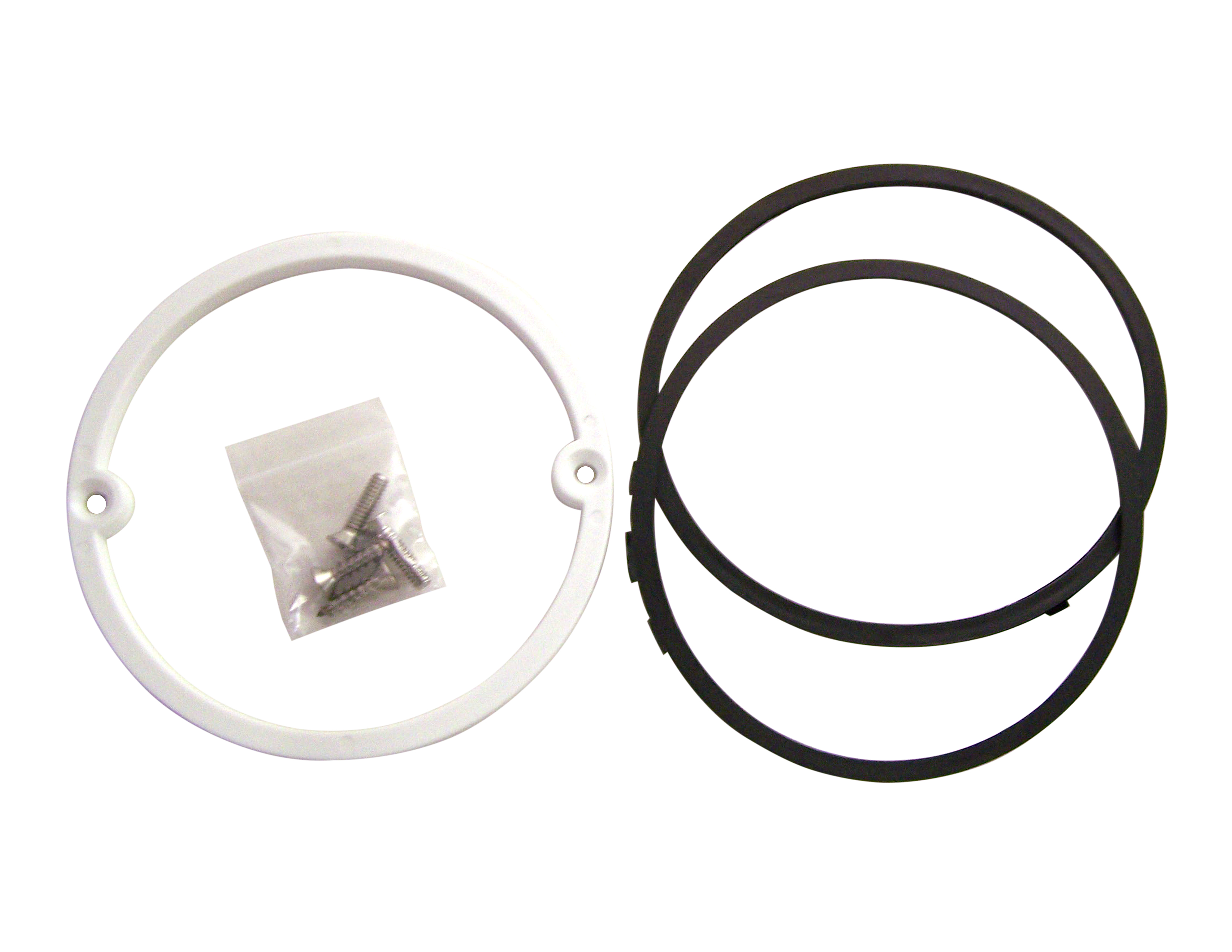

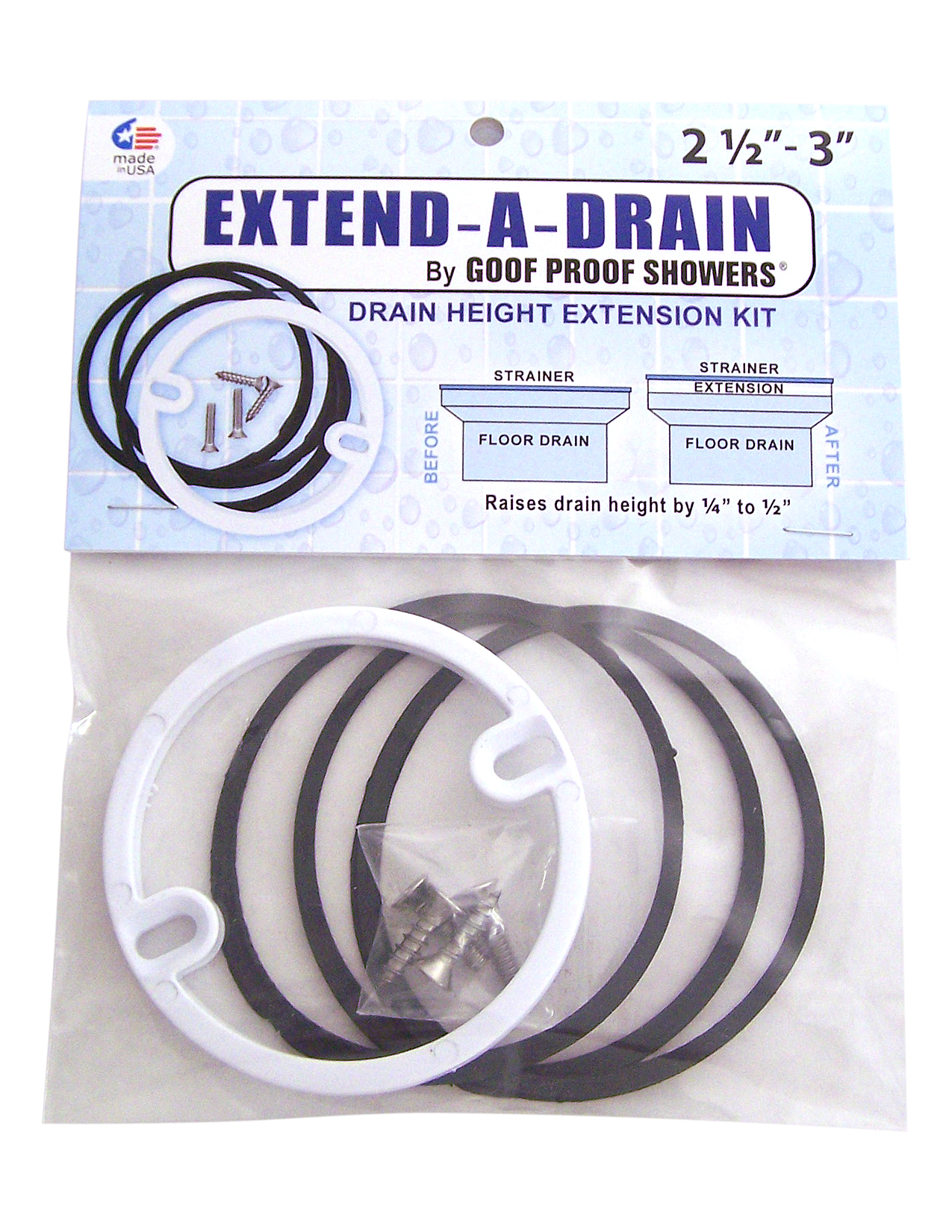

Give your tiled floor a more finished look by raising low drain grates with our Extend-A-Drain kits. Each Extend-A-Drain kit includes a ¼" thick plastic drain height extension ring, rubber washers and your choice of 2 pairs of screw types that will fit most drains. Additional kits can be combined for drain grates that need to be raised more than ½". The correct ring size corresponds to the distance between screw hole locations of the existing drain. To find the correct sized kit for you, measure the distance between these screw holes. Three sizes available: 2 ½- 3", 3⅜” and 4⅜”

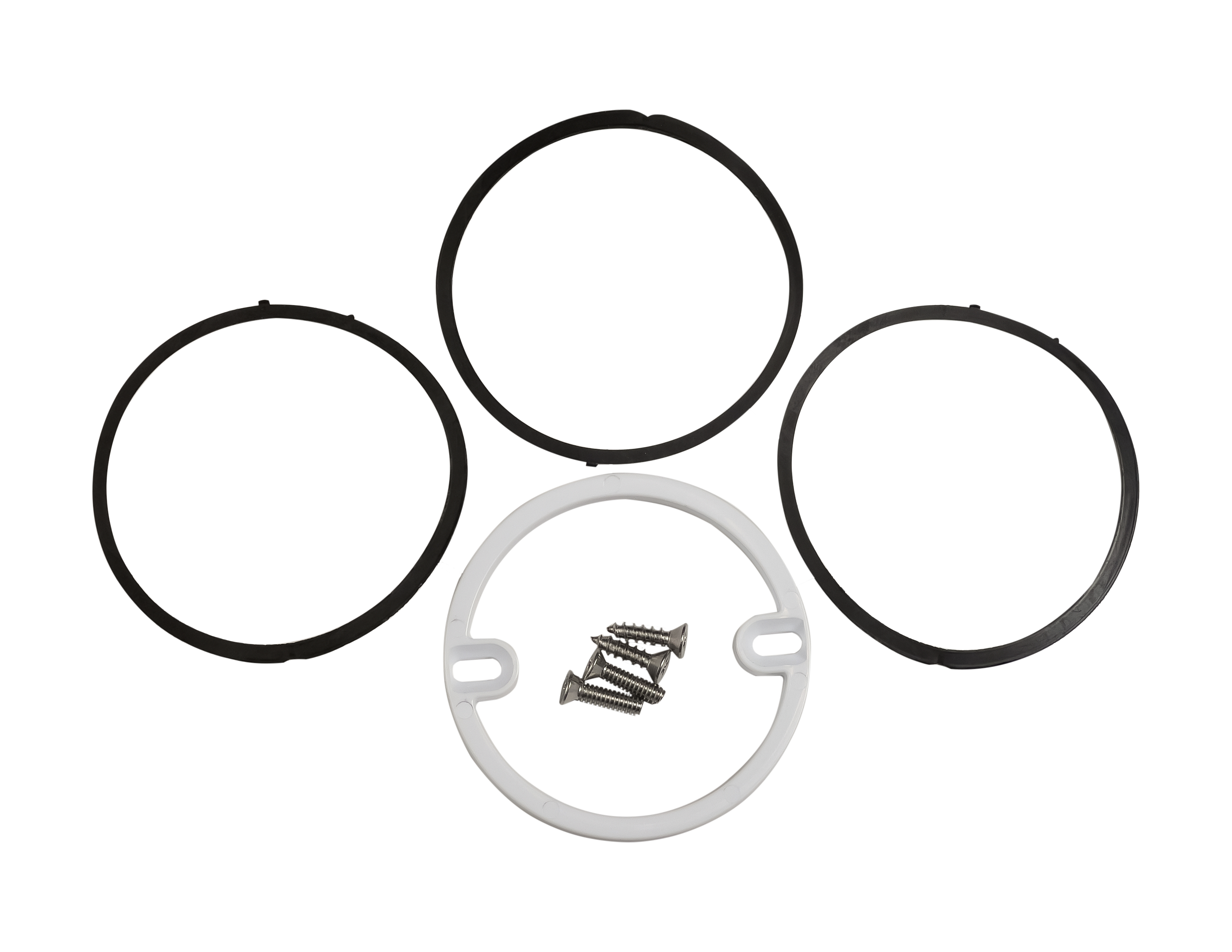

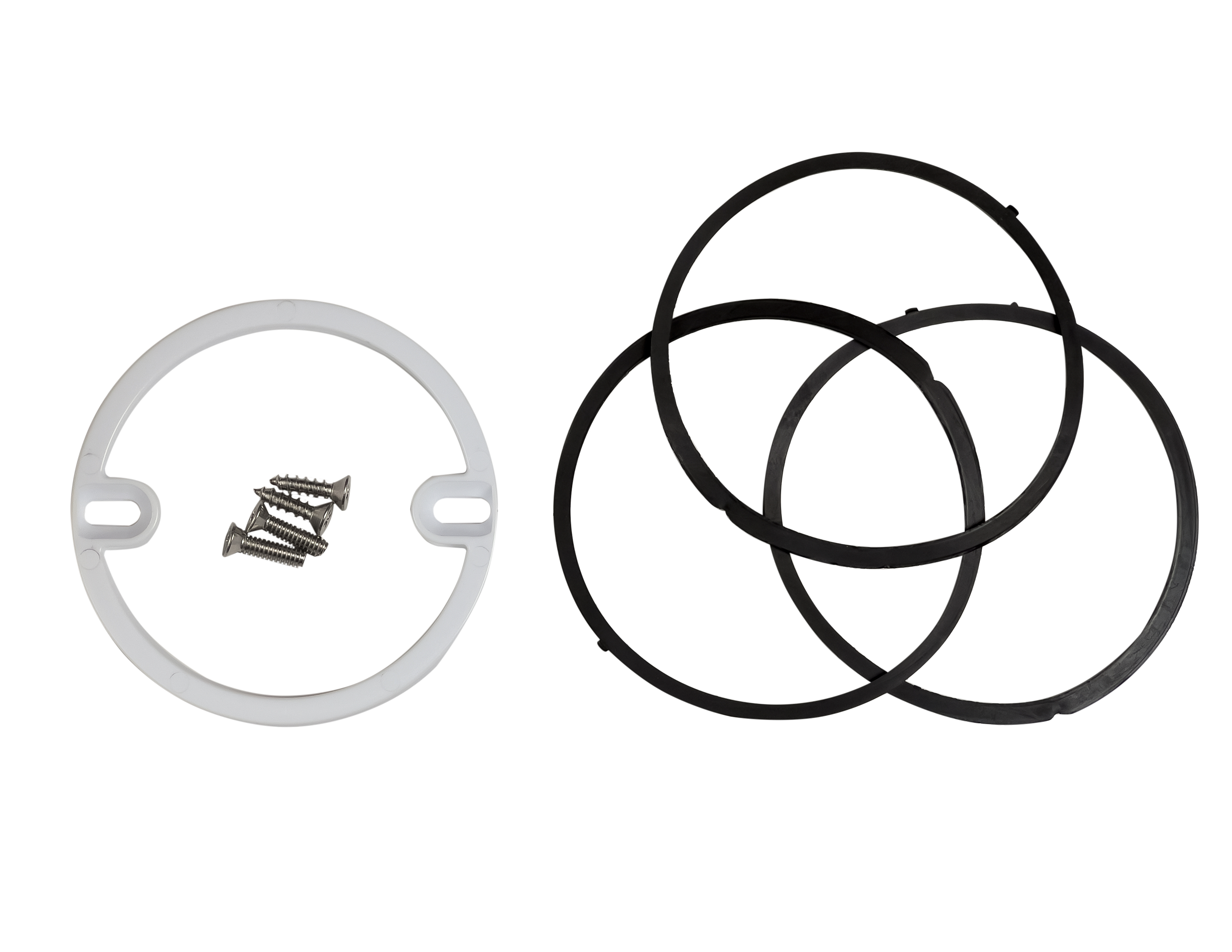

2½-3"
GPEAD-2123R
This extension ring has oblong holes that allow use with drain grates having screw holes between 2½-3" apart on center. 3 washers with screws included

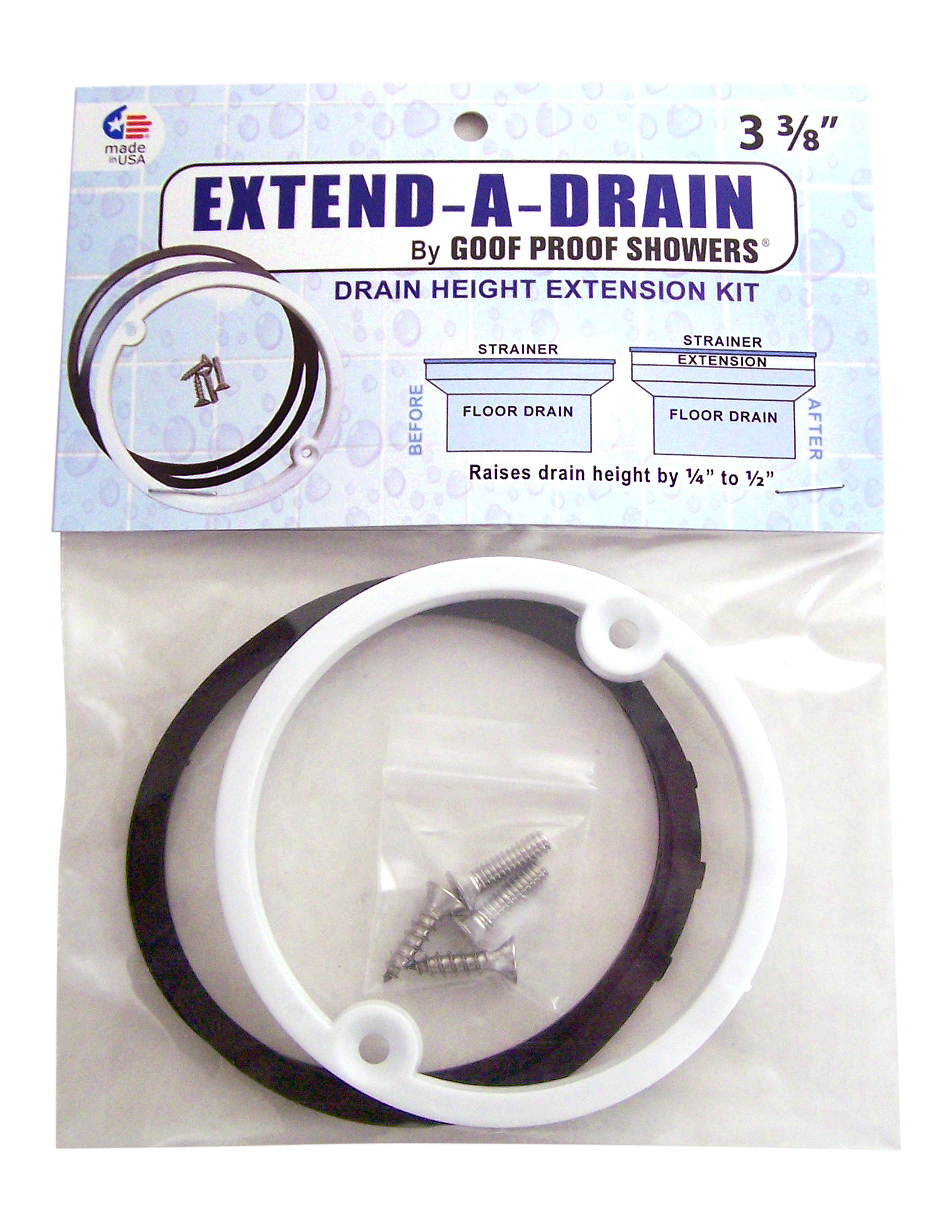

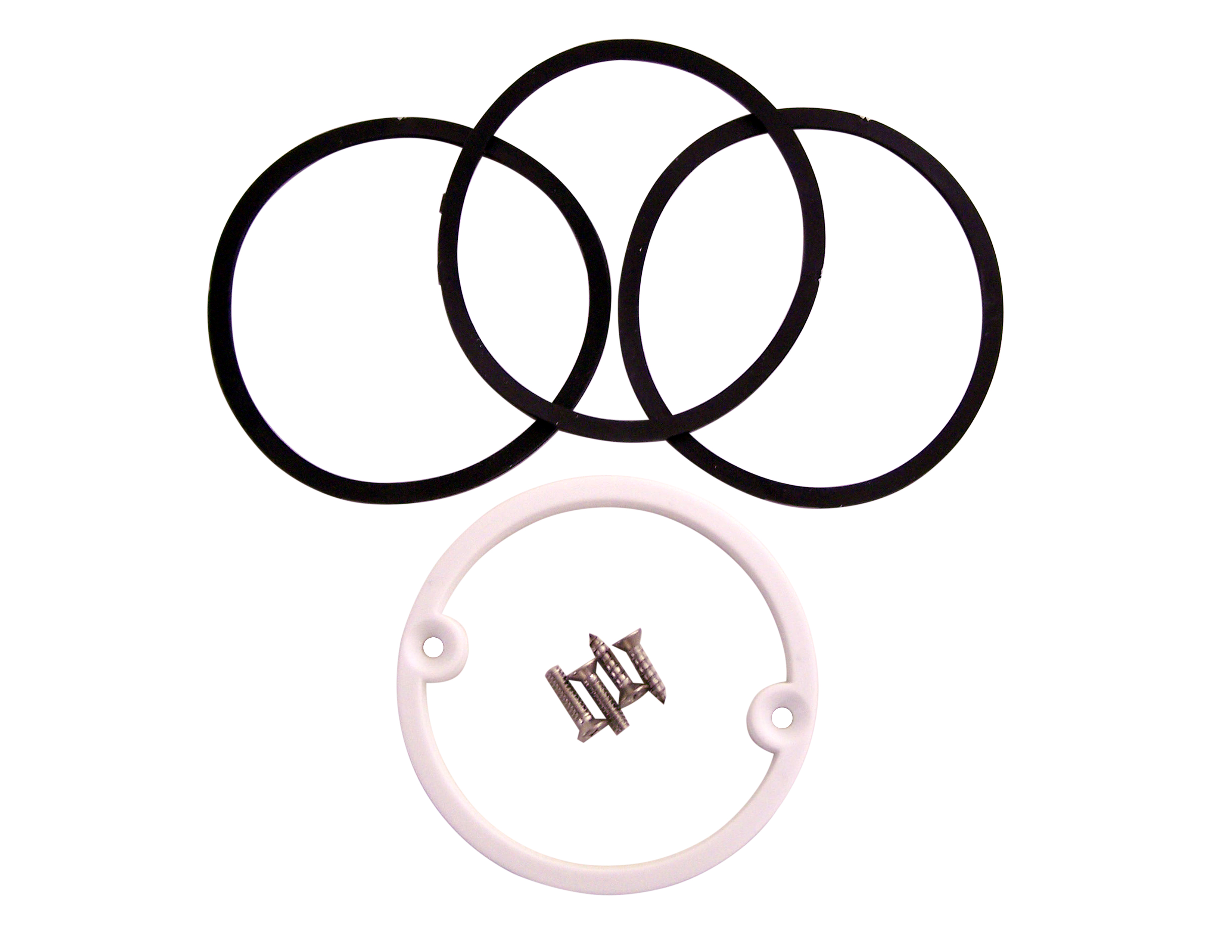

3⅜"

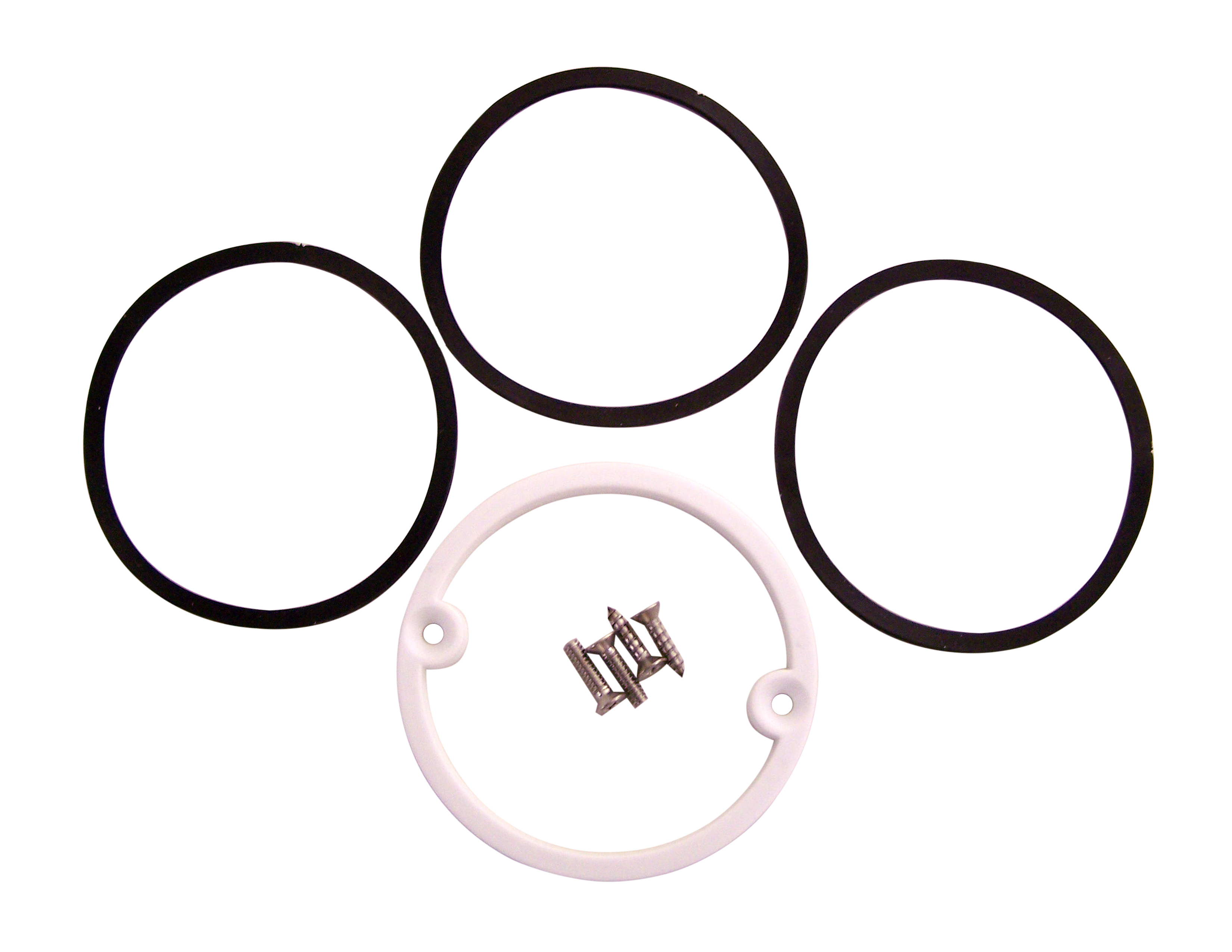

GPEAD-338R
This extension ring has holes that allow use with drain grates having screw holes 3⅜" apart on center. 3 washers with screws included

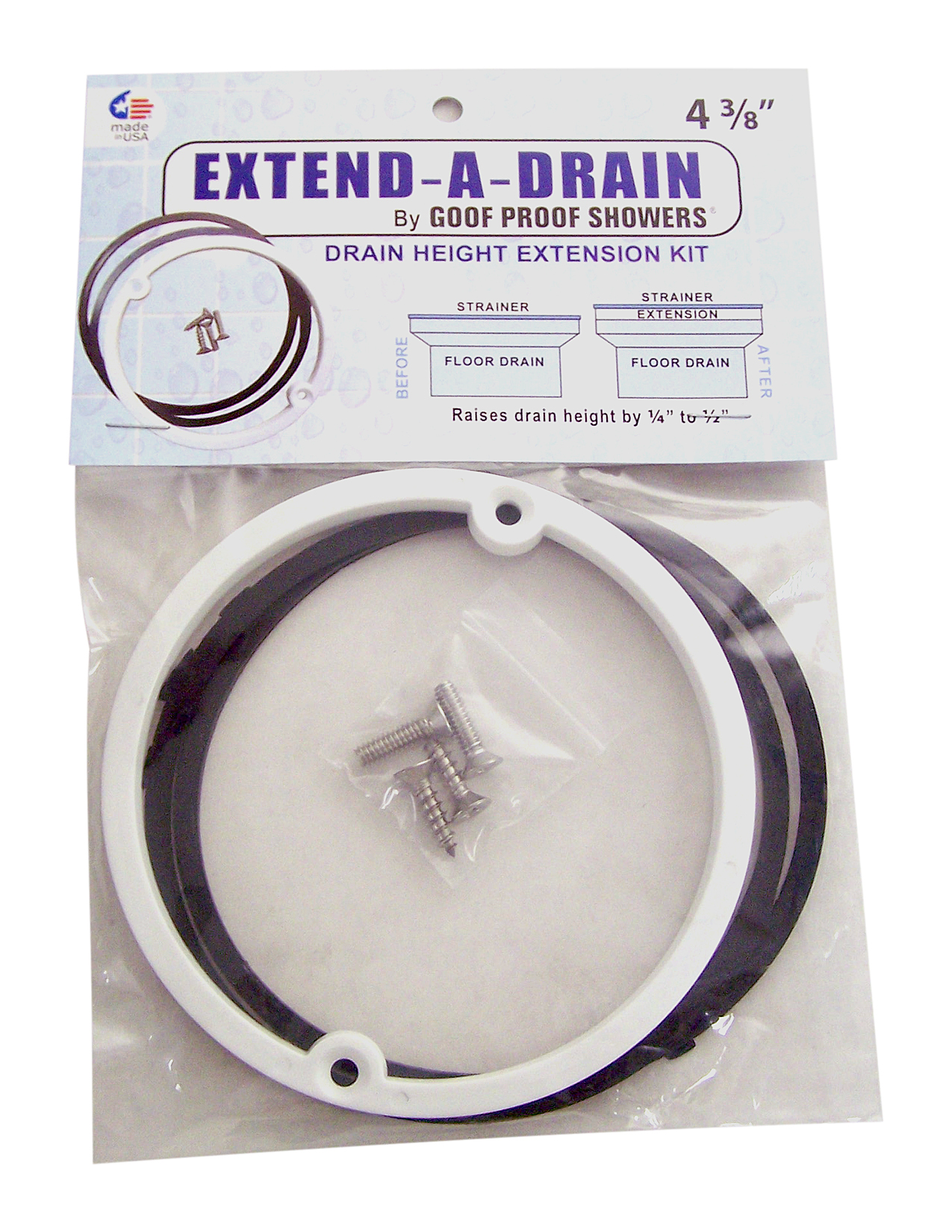

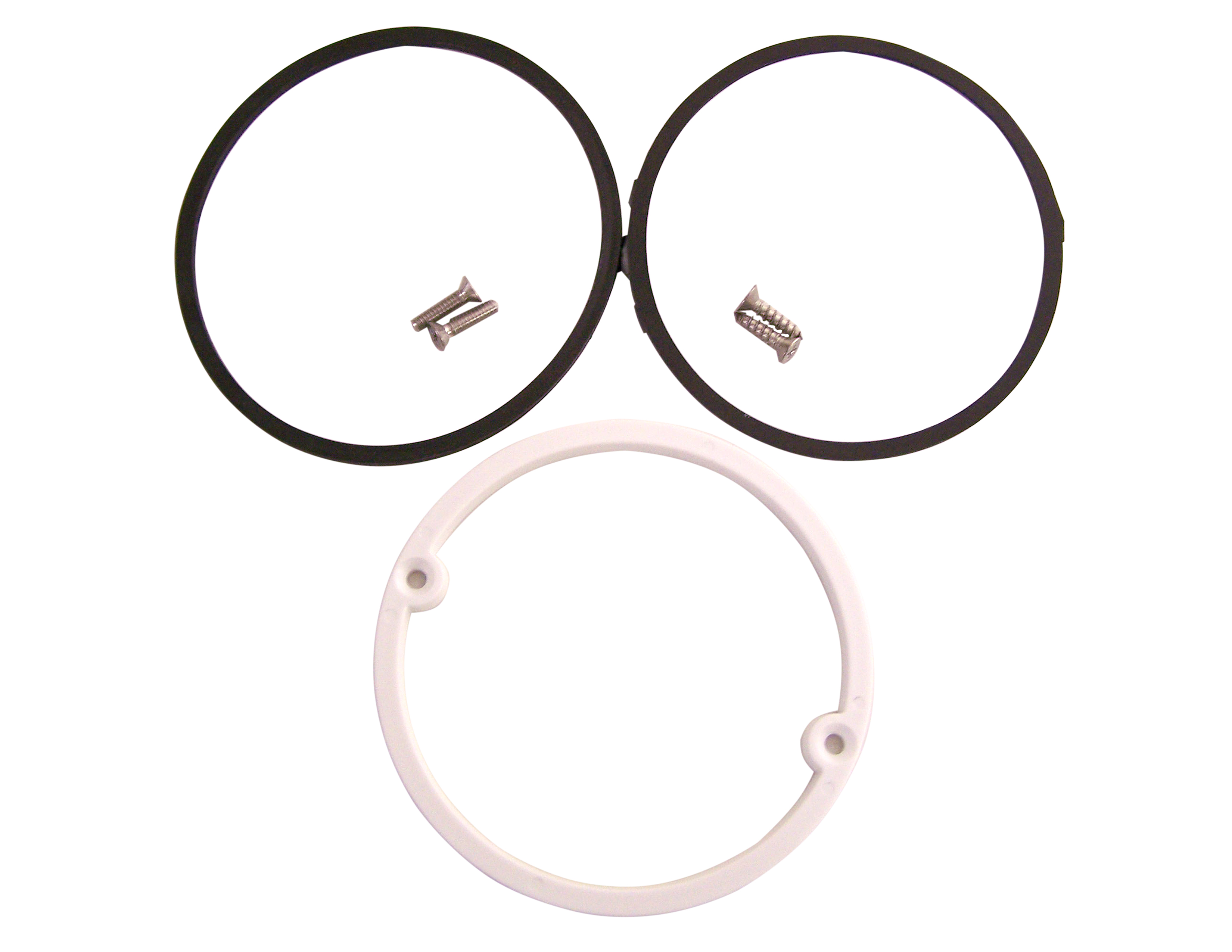

4⅜"
GPEAD-438R
This extension ring has holes that allow use with drain grates having screw holes 4⅜" apart on center. 2 washers wih screws included
High Heat Adaptor rings are used in Hot Mop shower waterproofing applications. The 2 in. ID Non-Threaded Flange will accommodate most linear drain outlets including all Goof Proof Linear Drains. The 2 in. ID Threaded Flange adapts to most cast iron drain bodies. These rings are a must when using the hot mop method of waterproofing.
- Adaptors used in Hot Mop shower waterproofing applications
- The 2" ID Threaded Ring will accommodate most cast iron drains to use standard threaded drain risers including Goof Proof Square Drain, Ebbe, Sioux Chief, Oatey, Zurn, ProFlo, Plumbing Products, Jones Stephens, Frank Pattern and more
- The 2" ID Non-Threaded Ring is for use with Goof Proof Linear Drains plus many other linear drains
- 6" OD / 0.60 thickness
- Heavy duty PPS material
- Low profile
- Integrated weep holes
- Rated to 500 degrees

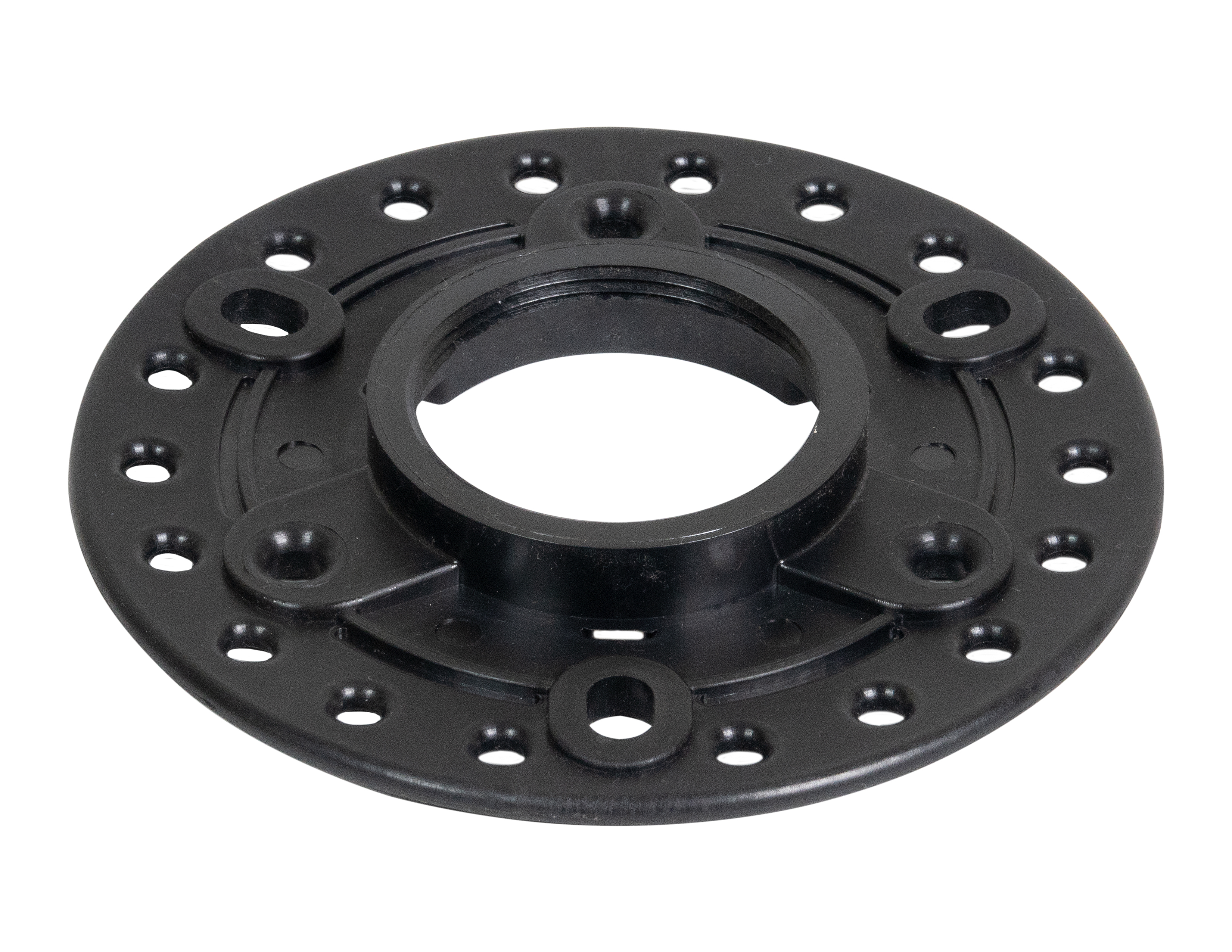

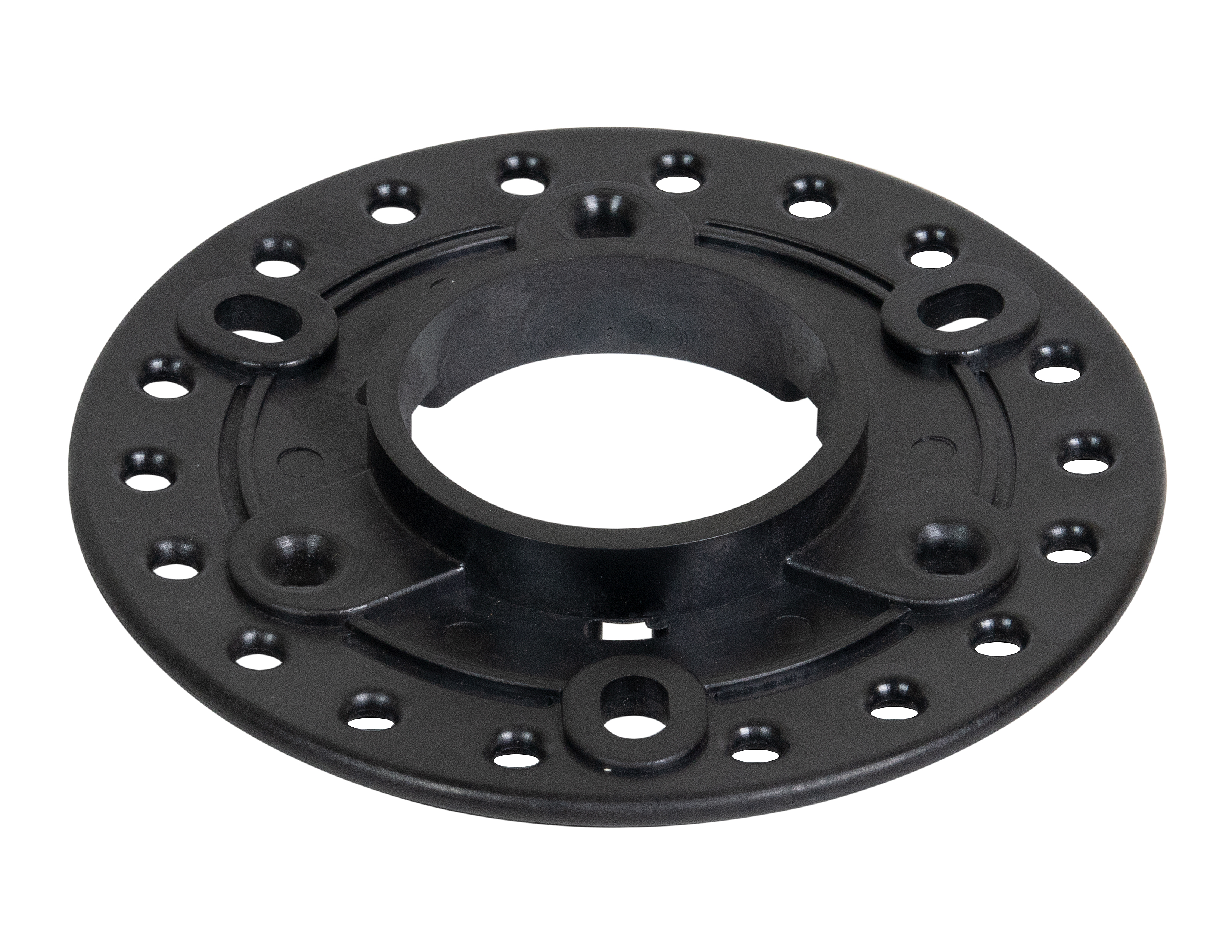

HHCLDF-NT
Top ViewNon-Threaded

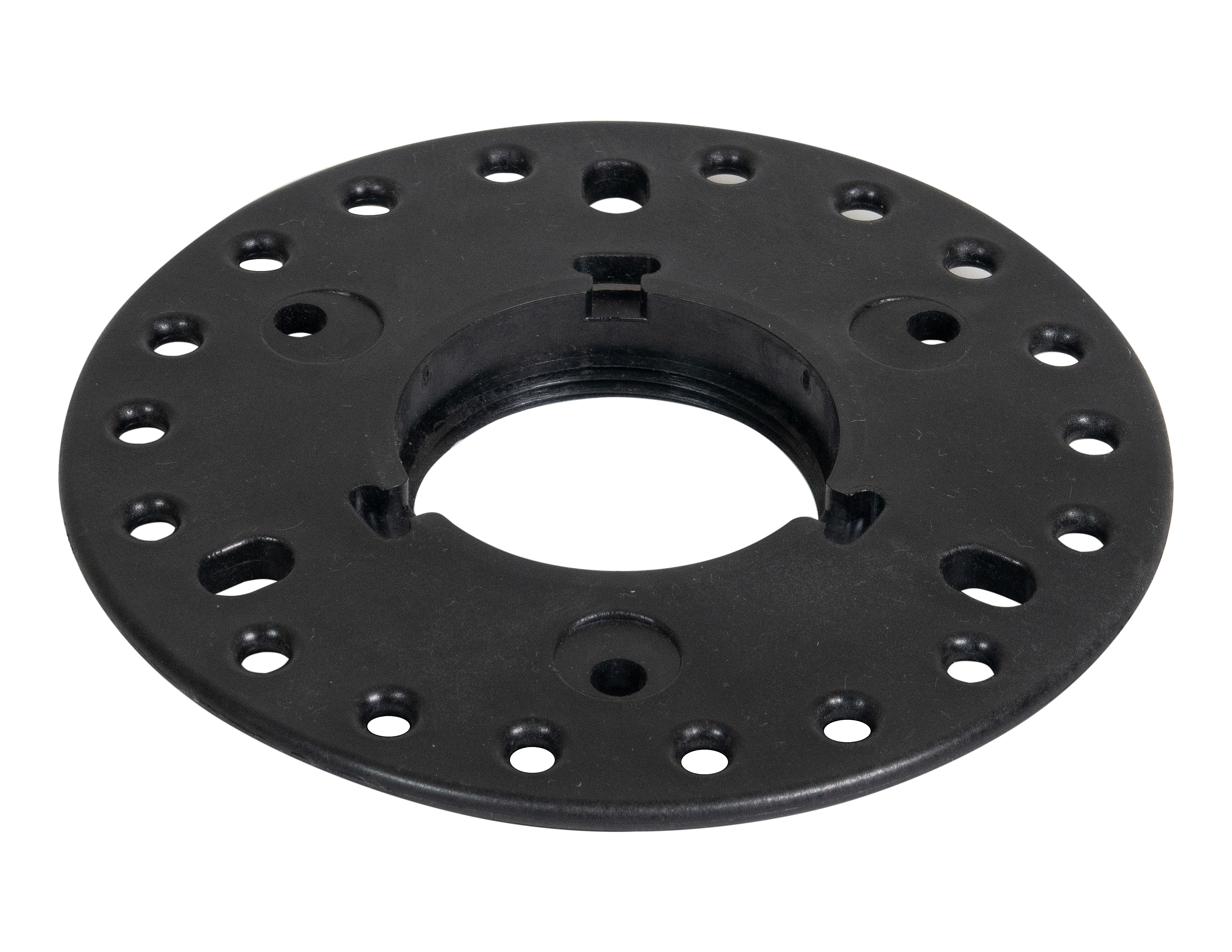

Bottom ViewHHCLDF-T
Threaded

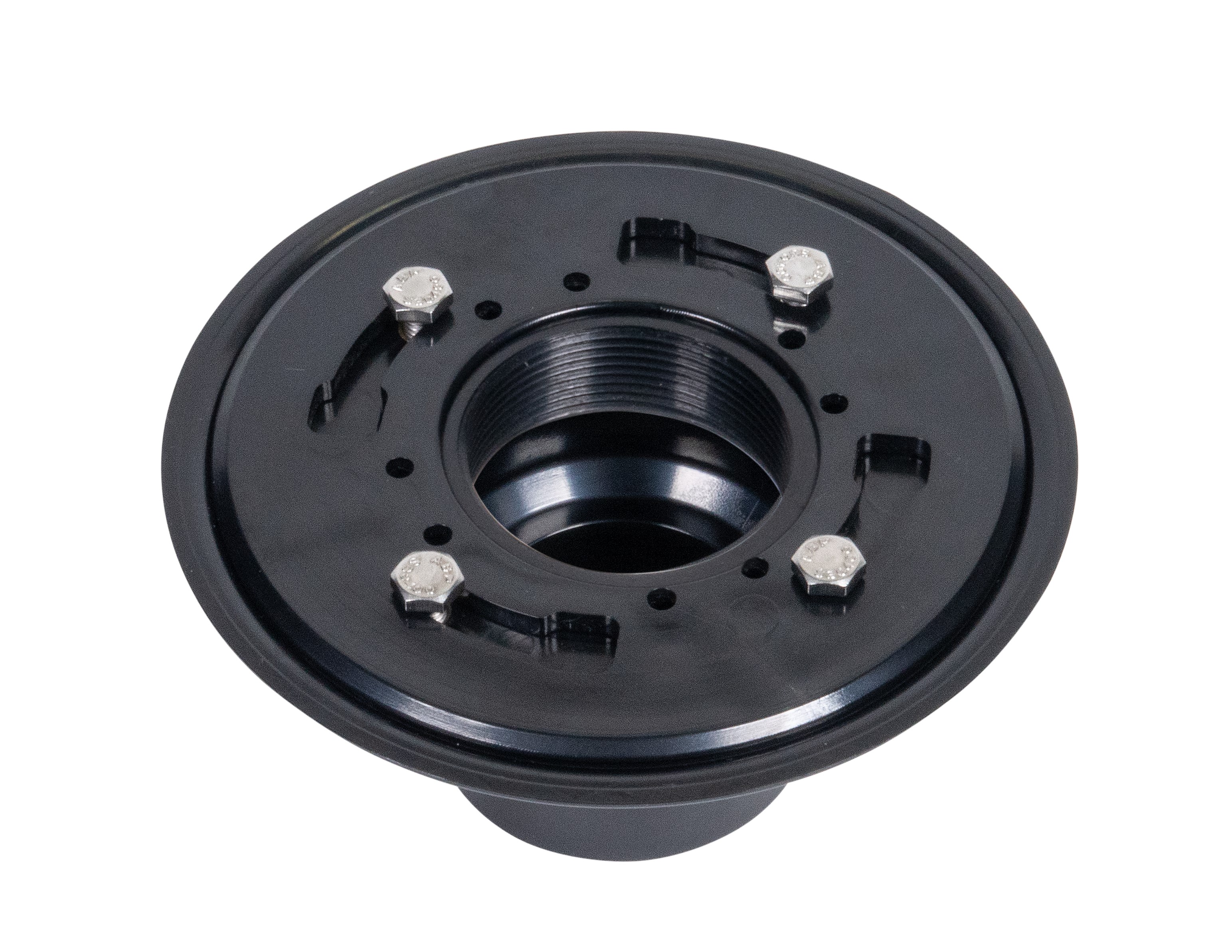

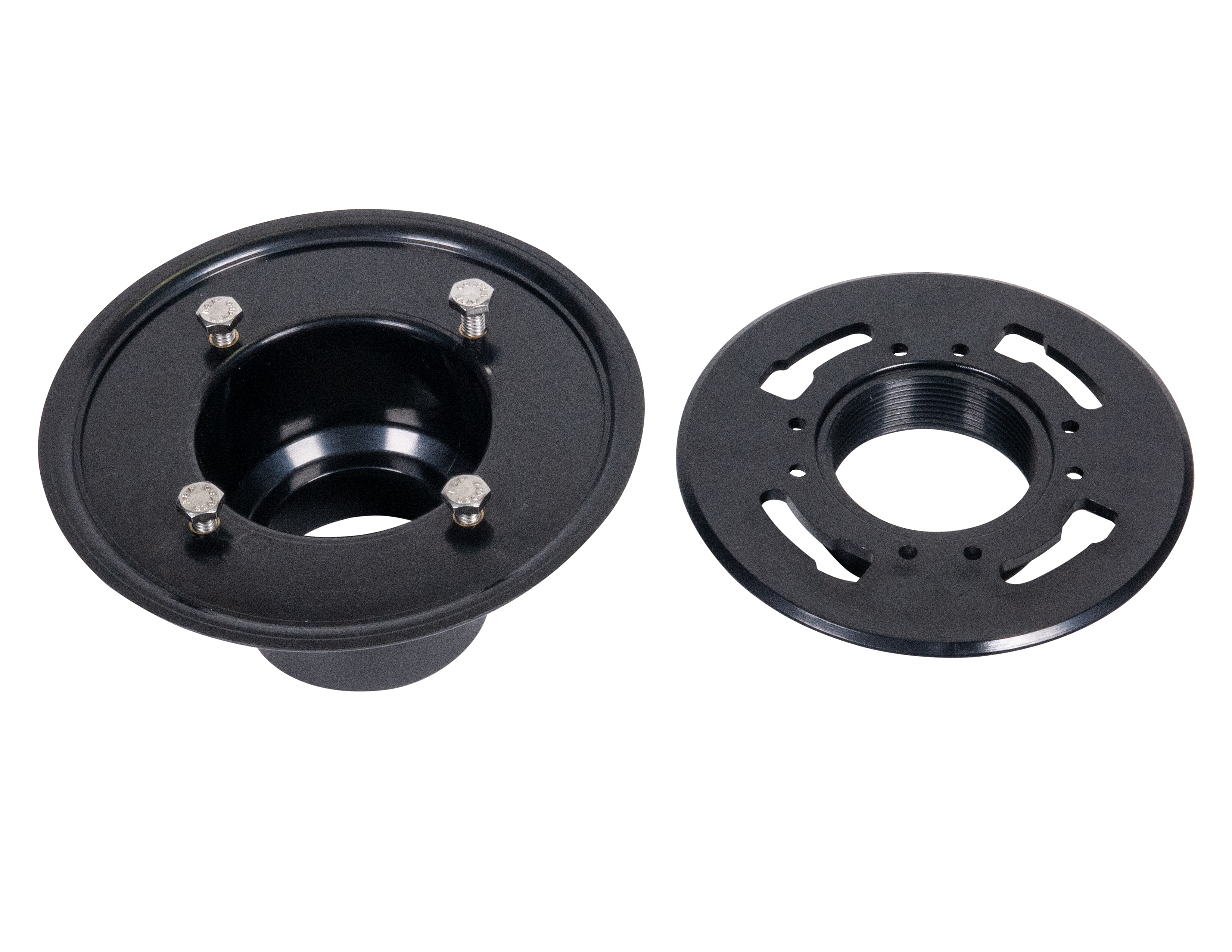

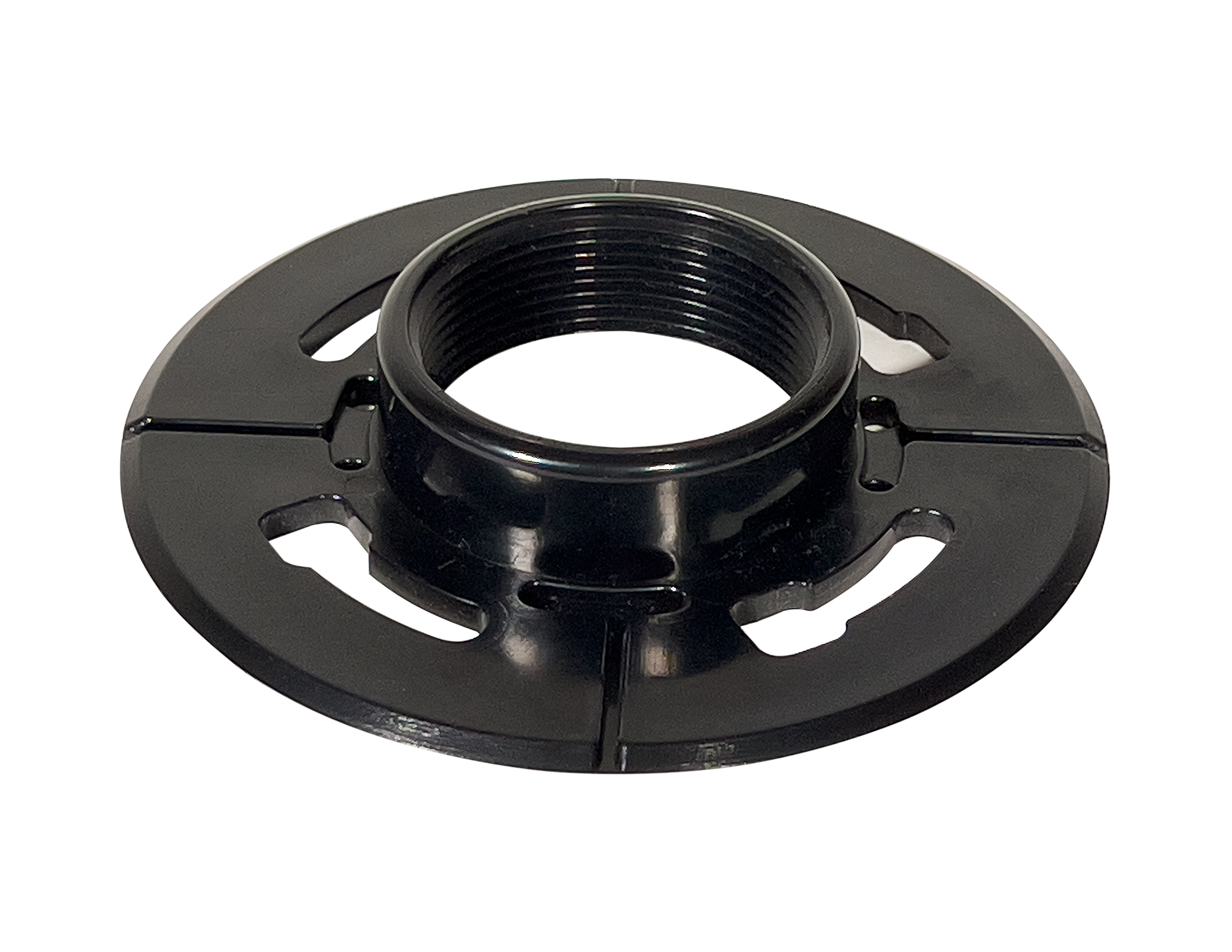

Shower Drain Base with Threaded Clamping Flange
CLDTF-32ABS
A substitute drain assembly with a threaded clamping flange will accommodate most aftermarket drain risers. Multiple built-in weep holes to ensure drainage. Low profile, PVC solvent weld drain for 2” over or 3” inside DWV waste pipe connections
3 ¾” on-center clamping bolt hole spacing
2” inside diameter threaded center hole

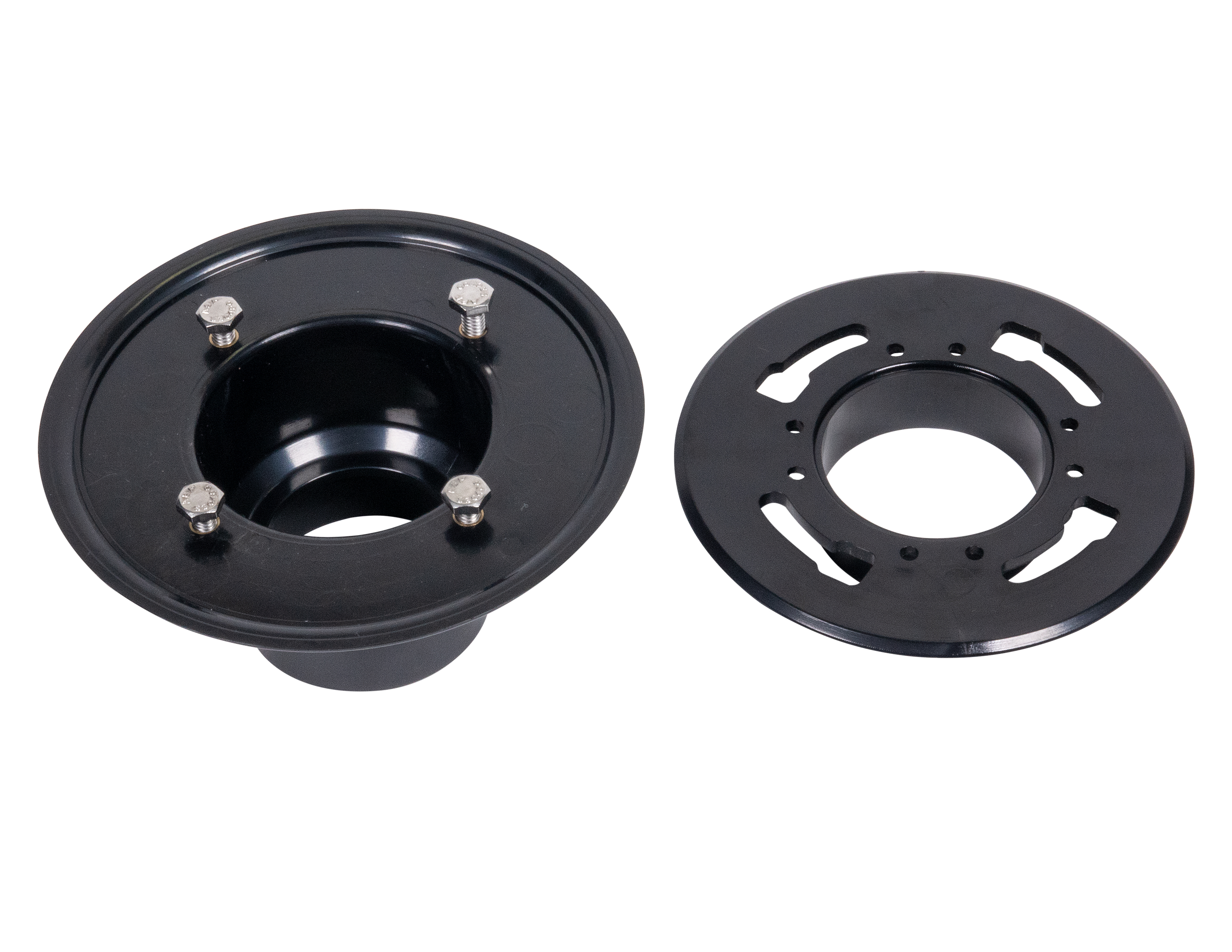

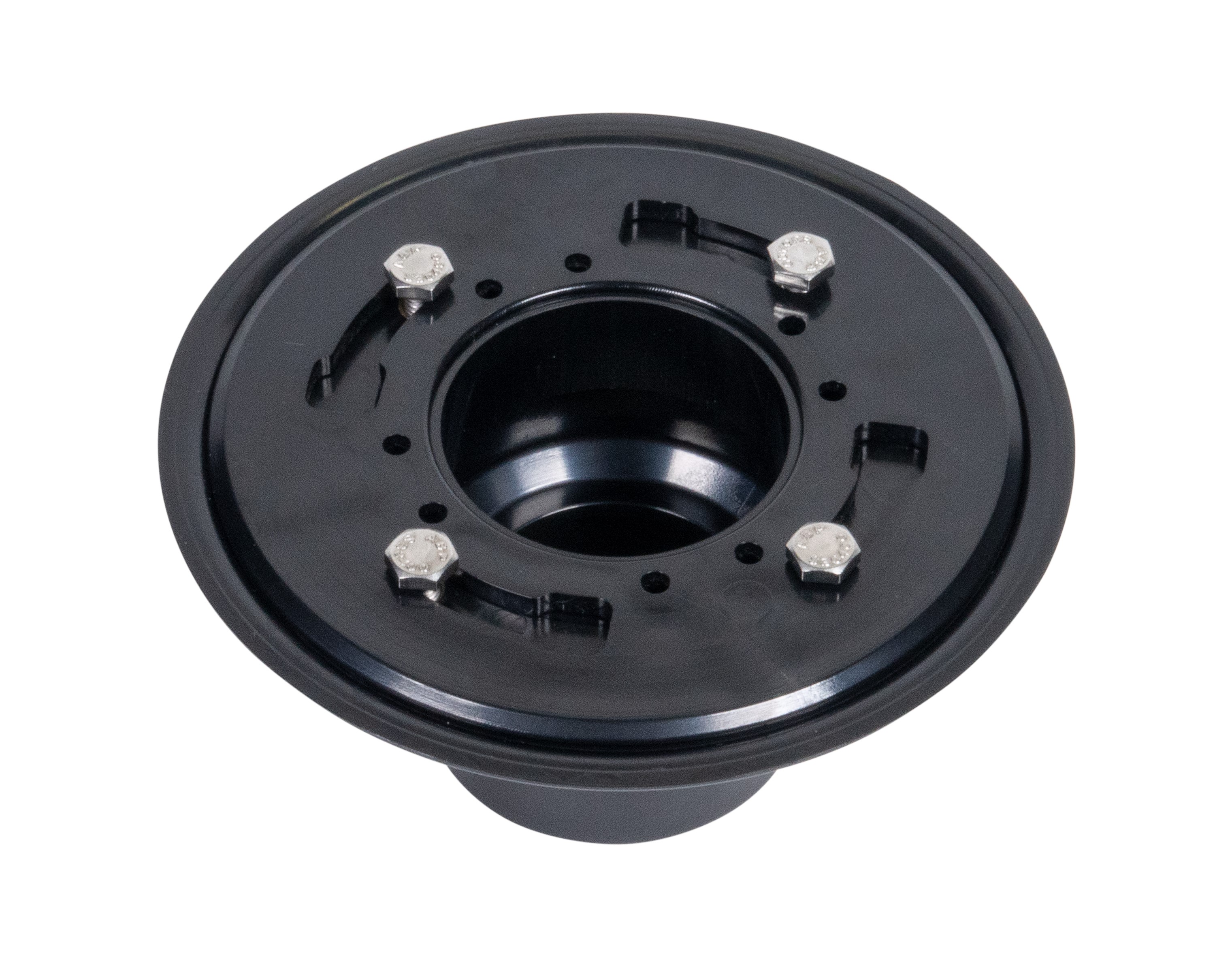

Shower Drain Base with Non-Threaded Clamping Flange
CLDNTF-32ABS
A substitute drain assembly with a non-threaded clamping flange used for linear drains. Multiple built-in weep holes to ensure drainage. Low profile, PVC solvent weld drain for 2” over or 3” inside DWV waste pipe connections
3 ¾” on-center clamping bolt hole spacing
2” slip/non-threaded center hole will accommodate most linear drain outlets and rubber seals

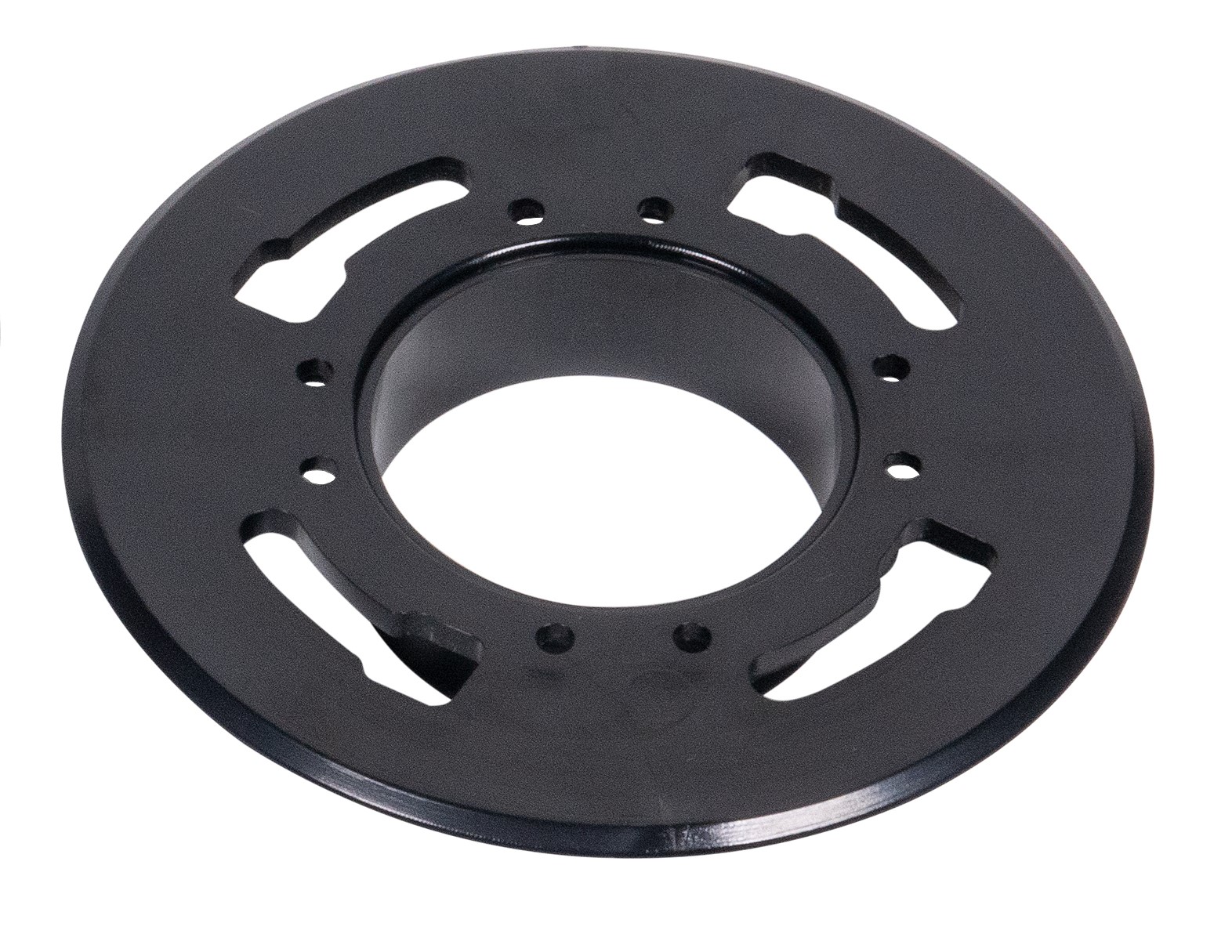

Non-Threaded Clamping Flange
CLDF-32ABS
An adaptor that replaces a standard threaded clamping flange to accommodate most 2 " linear drain outlets and inclusive rubber seals. 2” inside diameter, non-threaded center hole. 3 ¾” on-center clamping bolt hole spacing
